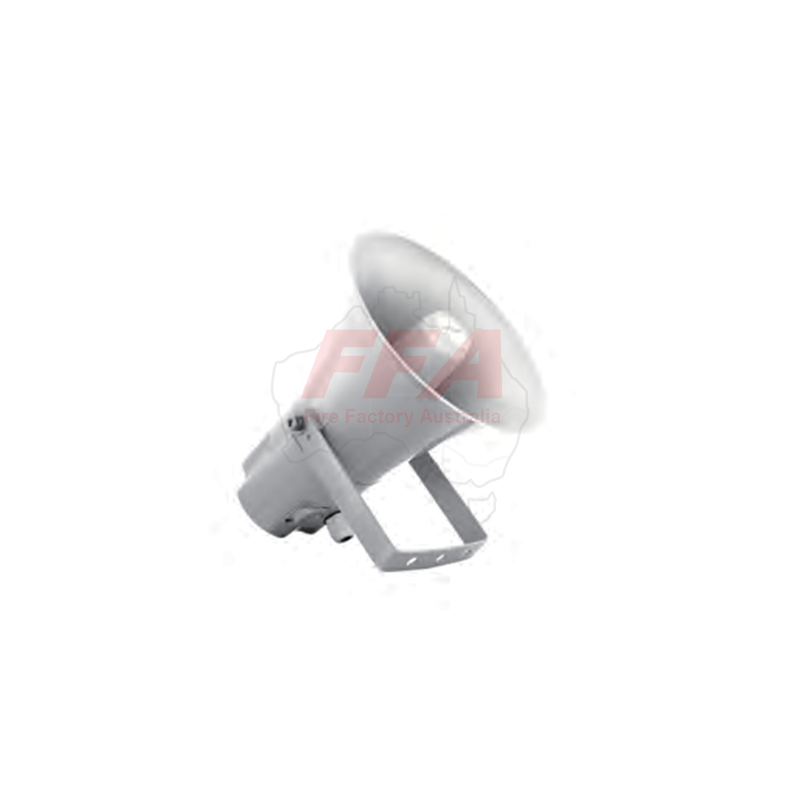

The L-VHP15A/EN is a 15W high-performance horn loudspeaker designed for voice alarm and evacuation systems.
It delivers high sound pressure, clear speech intelligibility, and reliable operation in outdoor and harsh environments.
It is ideal for public and industrial applications.
| Models | SMX+650-1L-PS5, SMX+900-1L-PS5, SMX+900-1L-PS11, SMX+650-1L-PS11GL, SMX+12U1LPS11, SMX+28U1LPS11, SMX+40U1LPS11, SMX+40U1LPS11, LCM-320, LEM-320 |
|---|
| Part Number | L-VHP15A/EN (SAI) |
|---|---|
| Speaker Type | Voice Alarm Horn Loudspeaker |
| Compliance | EN54-24, AS ISO 7240-24, BS 5859-8 |
| Ingress Protection | IP66 |
| Rated Power | 15W |
| Maximum Power | 25W |
| Power Tappings | 15W / 10W / 5W / 8Ω |
| Rated Input Voltage | 100V / 70V |
| Rated Impedance | 667Ω / 1000Ω / 2000Ω |
| SPL @ 1m | 117dB @ 15W / 105dB @ 1W |
| SPL @ 4m | 105dB @ 15W / 93dB @ 1W |
| Frequency Response | 300Hz – 16kHz (-10dB) |
| Speaker Driver | Compression Driver |
| Connection | Fire-resistant cable |
| Dimensions | 213mm × 265mm |
| Weight | 2.05kg |
| Colour | Grey (RAL7035) |
| Operating Temperature | -25°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| Relative Humidity | Up to 95% |
