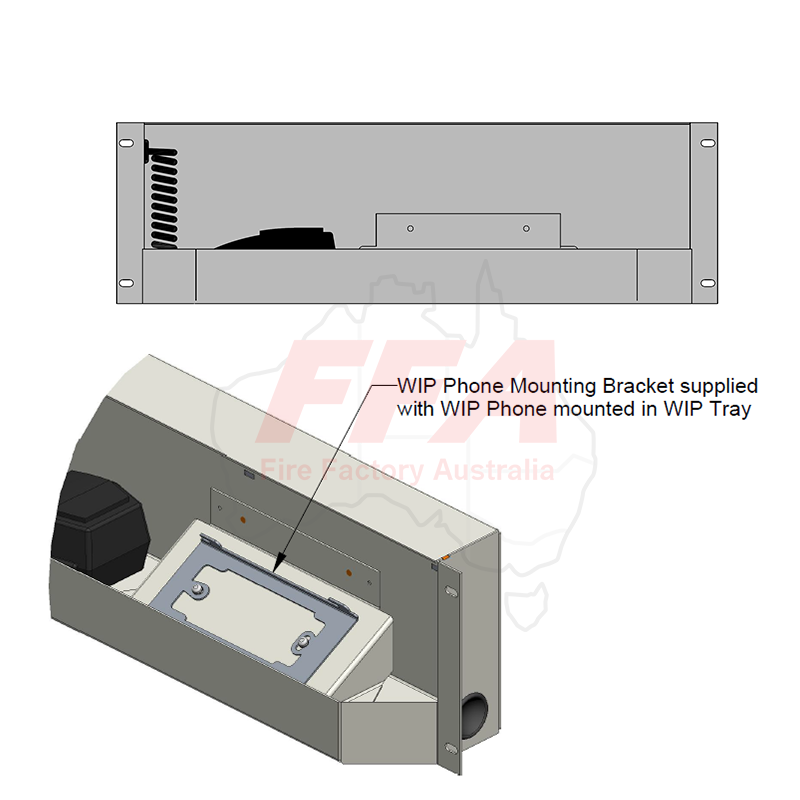

Metal 3U WIP Tray for the QE20 inner door. Holds the speech microphone and provides mounting space for the master WIP handset. Used with QE20 systems for paging and WIP master operation. Includes earth bonding and microphone cabling to the Controller.
| Models | SMX+650-1L-PS5, SMX+900-1L-PS5, SMX+900-1L-PS11, SMX+650-1L-PS11GL, SMX+12U1LPS11, SMX+28U1LPS11, SMX+40U1LPS11, SMX+40U1LPS11, LCM-320, LEM-320 |
|---|
| Product Code | FP2014 |
|---|---|
| Product Name | QE20 WIP Tray |
| Main Function | 3U metal tray for mounting the speech microphone and master WIP handset on the QE20 inner door |
| Mounting Location | QE20 inner door, typically bottom 3U position |
| Mounting Hardware | 4 × M4 × 10 screws |
| Included Components | Metal WIP tray with microphone fitted WIP handset mounting bracket (tray-mounted) |
| Microphone | 600Ω noise-cancelling microphone, supervised, with PTT switch |
| Microphone Connection | Pre-fitted microphone lead to Controller J15 (PA MIC) |
| Master WIP Handset Support | Vigilant FP0938 WIP handset (not supplied) Wired to Circuit 20 of the assigned WIP/Input Module |
| WIP Handset Wiring | 2-wire connection to IN+ / IN- terminals 10kΩ EOL resistor required (fitted to handset as standard) |
| Earth Requirement | Must be earthed to cabinet body and linked to other UI modules |
| Internal Wiring | Microphone lead routed to Controller Optional WIP handset cable routed from WIP/Input Module |
| Power Supply | Not required (passive assembly) |
| Mechanical Size | 3U high, QE20 inner door mounting |
| Operating Conditions | -5°C to +45°C, 10% to 93% RH (non-condensing) |
| Kit Contents | 1 × QE20 WIP Tray with microphone fitted 4 × M4 × 10 mounting screws 2 × M3 × 6 screws (WIP bracket) 1 × Earth loom (250mm) 1 × LT0710 installation instructions |
