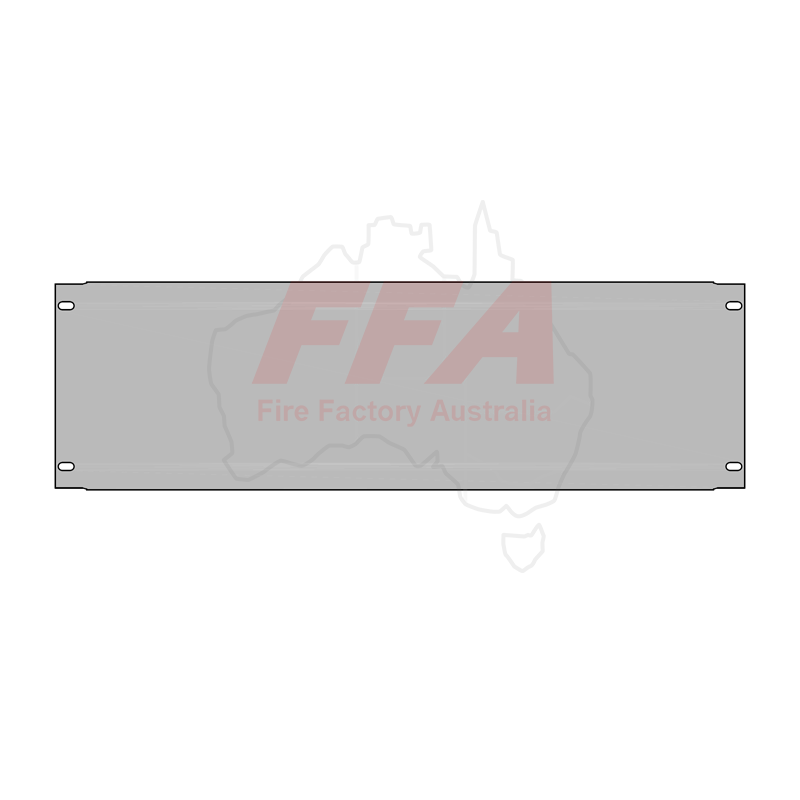

3U metal blank extender plate for the QE20 inner door. Used to fill unused user interface space, keep the panel neat, and allow future expansion. Includes earth bonding to maintain cabinet earthing continuity.
| Models | SMX+650-1L-PS5, SMX+900-1L-PS5, SMX+900-1L-PS11, SMX+650-1L-PS11GL, SMX+12U1LPS11, SMX+28U1LPS11, SMX+40U1LPS11, SMX+40U1LPS11, LCM-320, LEM-320 |
|---|
| Product Code | FP2015 |
|---|---|
| Product Name | QE20 UI Blank Extender |
| Main Function | Blank 3U metal plate used to fill unused space on the QE20 inner door |
| Mounting Location | QE20 inner door |
| Mounting Height | 3U |
| Typical Position | Top or bottom of the user interface stack to allow future expansion |
| Mounting Hardware | 4 × M4 × 10 screws |
| Earth Requirement | Must be earthed to cabinet body or adjacent UI module Supports earth daisy-chaining to other UI modules |
| Included Earth Lead | LM0678, 450mm |
| Electrical Function | None (passive component) |
| Material | Metal plate |
| Operating Conditions | -5°C to +45°C, 10% to 93% RH (non-condensing) |
| Kit Contents | 1 × QE20 Blank Extender Plate 1 × Earth lead (450mm) 4 × M4 × 10 mounting screws 1 × LT0695 installation instructions |
