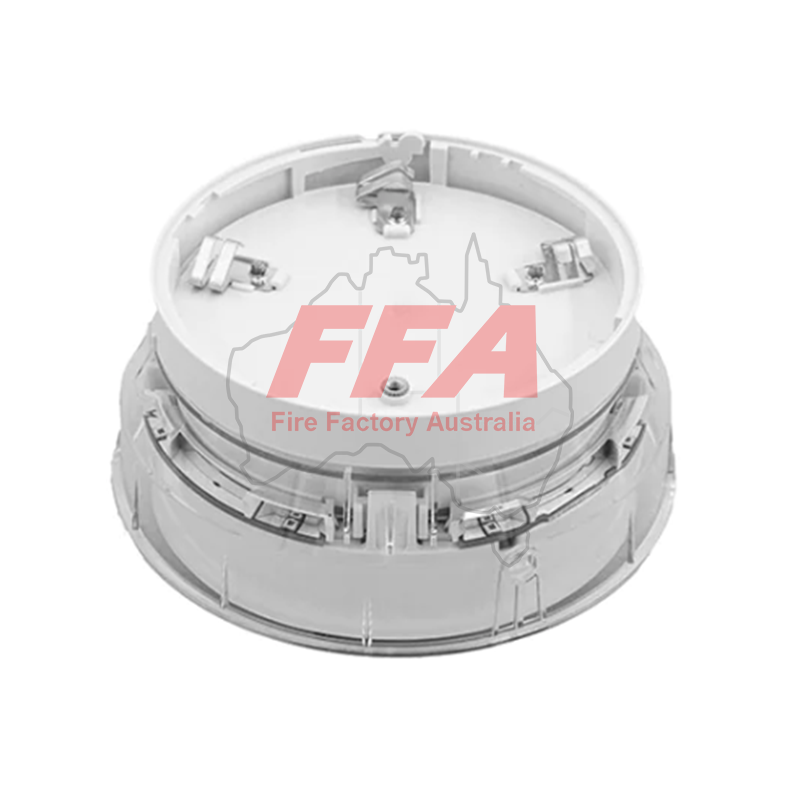

Honeywell BRH-PC-I00 Premium Intelligent Detector Base Sounder Strobe (VAD)
The Honeywell BRH-PC-I00 Premium Intelligent Detector Base Sounder Strobe is a loop-powered audible and visual alarm device designed for use with compatible System Sensor addressable fire alarm systems. Combining a high-performance sounder with an EN54-23 certified visual alarm device (VAD), it provides effective occupant notification while simplifying installation by integrating directly with the detector base.
Certified to EN54-3, EN54-17, and EN54-23, the BRH-PC-I00 delivers a powerful sound output of up to 96 dB(A) ±3 dB at 1 metre and features a high-intensity red strobe with a 0.5 Hz flash rate in EN54-23 mode. The device offers multiple approved coverage options, including C-3-15, C-3-11, and O-1-4, making it suitable for a wide range of commercial fire alarm applications.
The unit is loop-powered, requiring no separate power supply, and is designed for installation with the B501AP low-profile detector base. Its low standby current and compact design make it an efficient and reliable notification solution for modern addressable fire detection systems.
Key Features:
- Genuine Honeywell / System Sensor premium detector base sounder strobe
- Loop-powered audible and visual alarm device (VAD)
- Certified to EN54-3, EN54-17 and EN54-23
- Sound output up to 96 dB(A) ±3 dB at 1 metre
- Red strobe with 0.5 Hz flash rate in EN54-23 mode
- EN54-23 coverage options: C-3-15, C-3-11 and O-1-4
- Low standby current for efficient loop operation

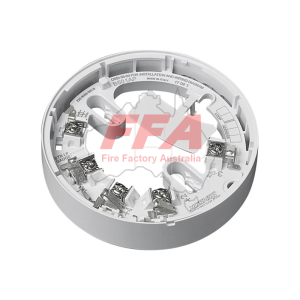

- Compatible with the B501AP low-profile detector base
- Pure white finish for professional installations
- Suitable for commercial and industrial fire alarm systems
Typical Applications:
- Commercial office buildings
- Hospitals and healthcare facilities
- Schools and universities
- Hotels and accommodation
- Retail centres
- Public buildings
- Industrial facilities
The Honeywell BRH-PC-I00 Premium Intelligent Detector Base Sounder Strobe provides reliable audible and visual alarm notification, helping ensure effective occupant warning while integrating seamlessly with compatible addressable fire alarm systems.
