Description
All TYCO Nozzles PDF

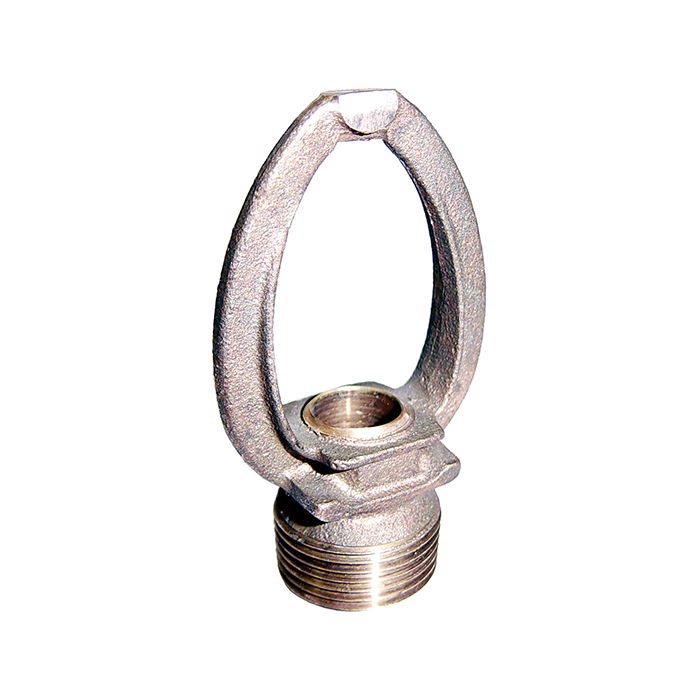

These nozzles are used in crossflow cooling towers that have combustible fill sections. These nozzles discharge water in a relatively narrow, elongated spray pattern. The Type 2 nozzle is designed for use in crossflow cooling towers without diffusion decks. It is oriented at a slightly lower angle than a Type 1 nozzle to produce a more divergent vertical spray pattern. This type of spray pattern is required in crossflow cooling towers without diffusion decks.
Technical Specification
| Property |
Specification |
| Brand |
Tyco |
| Model Series |
Tyco Type 1 Cooling Tower Nozzles |
| Thread size |
3/4” |
| K-Factor |
|
| Orientation |
Tower, Crossflow |
| Maximum Working Pressure |
175 psi (12.1 bar) |
| Finish Options |
B, SS |
| Compliance |
UL Listed; FM Approved |
| Reference Datasheet |
TFP830 |
Product specifications, approvals, and availability are subject to change without notice.
Always refer to the latest Tyco Fire Protection Products datasheets for complete and current information.
