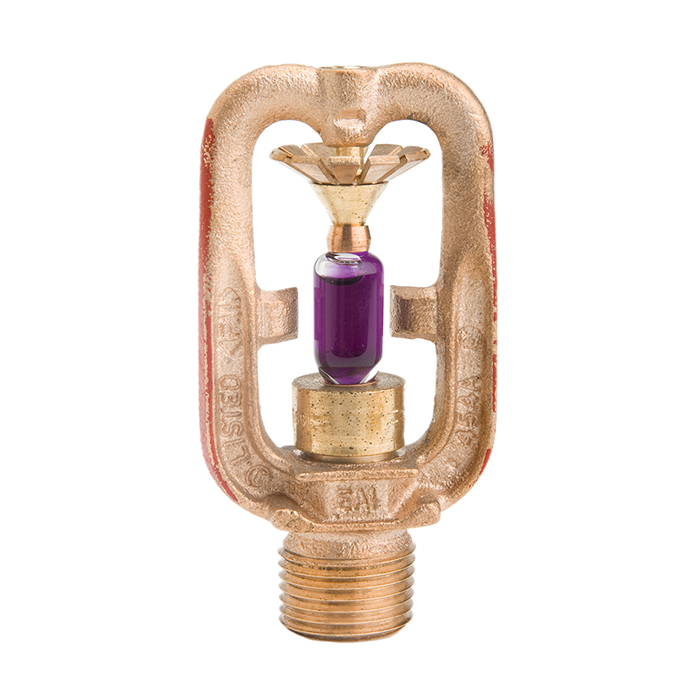

EA-1 (Medium Velocity Nozzles) Protectospray Directional Spray Nozzle, Automatic

EA-1 (Medium Velocity Nozzles) Protectospray Directional Spray Nozzle, Automatic

Description

All TYCO Nozzles PDF

These nozzles release a cooling spray to prevent excessive heat absorption, possible structural damage, or the spread of fire to protected equipment. However, use of an automatic nozzle requires consideration of the response time of the thermal element. The directional spray provided by these nozzles is especially effective for area coverage. The nozzles are sometimes used in lieu of standard sprinklers where directional spray is considered more appropriate. The nozzles are even used for fire control or extinguishment in some cases, depending on water design density requirements.

Technical Specification



Property Specification
Brand Tyco
Model Series Tyco EA-1 Nozzles
Thread size 1/2″
K-Factor Up to 5.6
Orientation Directional
Maximum Working Pressure 175 psi (12 bar)
Finish Options NFB, VCB, VPB
Compliance UL and C-UL Listed; FM Approved
Reference Datasheet TFP800

Product specifications, approvals, and availability are subject to change without notice.
Always refer
to the latest Tyco Fire Protection Products datasheets for complete and current information.
