Description
All TYCO Nozzles PDF

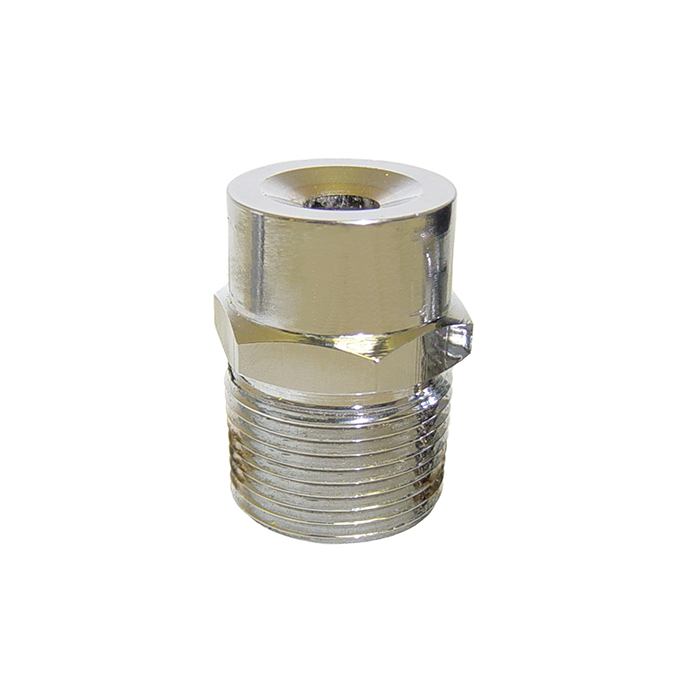

Mulsifyre nozzles are internal-scroll nozzles that discharge a uniformly filled cone of high-velocity water droplets. While they’re designed primarily for fire extinguishment and control, Mulsifyre nozzles can also be used for exposure protection. Mulsifyre nozzles are typically used in sprinkler systems to protect against special hazards such as chemical process equipment, conveyer systems, flammable liquid storage, openings in firewalls, and more.
Technical Specification
| Property |
Specification |
| Brand |
Tyco |
| Model Series |
Tyco F822 to F834 Nozzles |
| Thread size |
3/4″ |
| K-Factor |
Up to 7.2 |
| Orientation |
Directional |
| Maximum Working Pressure |
175 psi (12 bar) |
| Compliance |
UL and C-UL Listed |
| Reference Datasheet |
TFP810 |
Product specifications, approvals, and availability are subject to change without notice.
Always refer to the latest Tyco Fire Protection Products datasheets for complete and current information.
