Description
Fire Detection, Control Panels and System Accessories

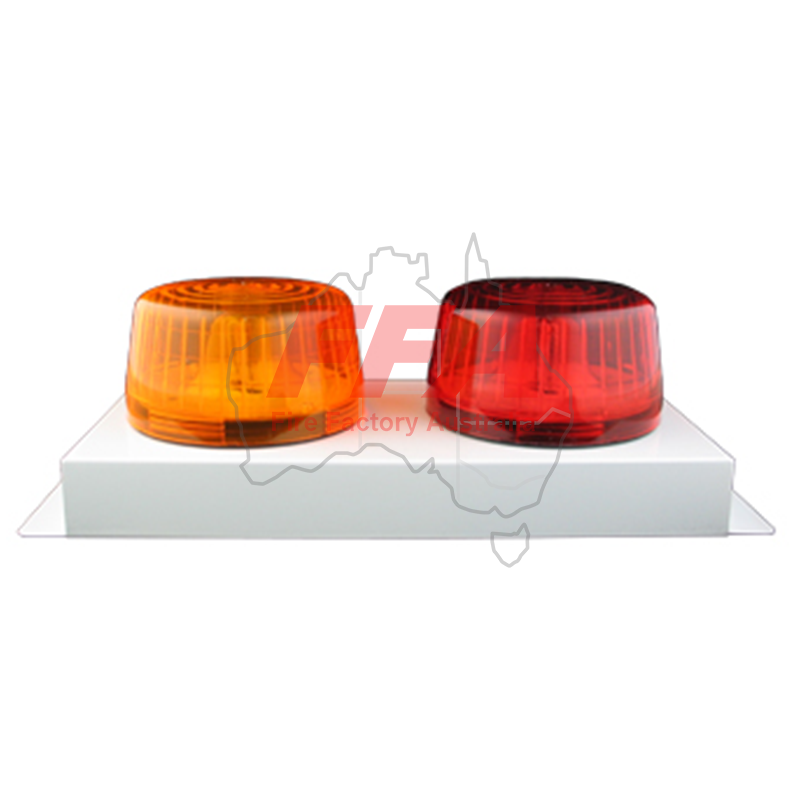

Dual red and amber strobe for emergency evacuation systems.
Polarity switching allows alert or evacuation mode.
Strong metal case. Surface mount. Easy wiring.
Fire Detection, Control Panels and System Accessories
Dual red and amber strobe for emergency evacuation systems.
Polarity switching allows alert or evacuation mode.
Strong metal case. Surface mount. Easy wiring.
| Models | SMX+650-1L-PS5, SMX+900-1L-PS5, SMX+900-1L-PS11, SMX+650-1L-PS11GL, SMX+12U1LPS11, SMX+28U1LPS11, SMX+40U1LPS11, SMX+40U1LPS11, LCM-320, LEM-320 |
|---|
| Product Code | STR-DUAL |
|---|---|
| Type | Dual Strobe (Visual Alarm) |
| Strobe Colours | Red (Evacuation) & Amber (Alert) |
| Supply Voltage (Nominal) | 24 VDC |
| Supply Voltage (Allowable) | 18–30 VDC |
| Current Consumption | 200–300 mA @ 24 VDC |
| Flash Rate | 2.3 Hz @ 24 VDC |
| Flash Energy | 3.12 Joules / second |
| Wiring Options | 2, 3 or 4 wire configurations |
| Activation | Polarity reversal (2-wire) or independent (4-wire) |
| Mounting | Surface mount |
| Enclosure | White powder-coated steel |
| Dimensions (H × L × W) | 85 × 285 × 122 mm |
| Weight | 620 g |
| Conduit Knockout | 19 mm |
| Standard | AS 2220.1-1989 |
