| Property | Specification |
|---|---|
| Brand | Tyco |

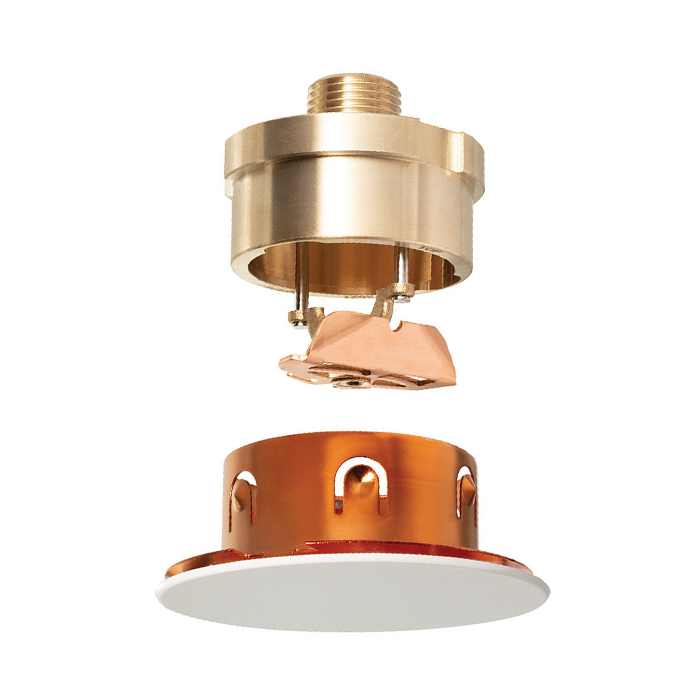

| Model Series | Tyco RFll Sprinklers |
| Operating element | Bulb and Solder |
| Response | Standard Coverage |
| Thread size | 1/2″ |
| K-Factor | 5.6 |
| Orientation | Concealed Pendent and Flat Plate Concealed |
| Temperature Ratings °F | 155, 200 |
| Maximum Working Pressure | 250 psi |
| Finish Options | Refer Data Sheet Ordering Procedure |
| Compliance | UL, C-UL, NYC, VdS, LPCB |
| Reference Datasheet | TFP181, TFP185 |
Product specifications, approvals, and availability are subject to change without notice.
Always refer to the latest Tyco Fire Protection Products datasheets for complete and current information.
