| Property | Specification |
|---|---|
| Brand | Tyco |

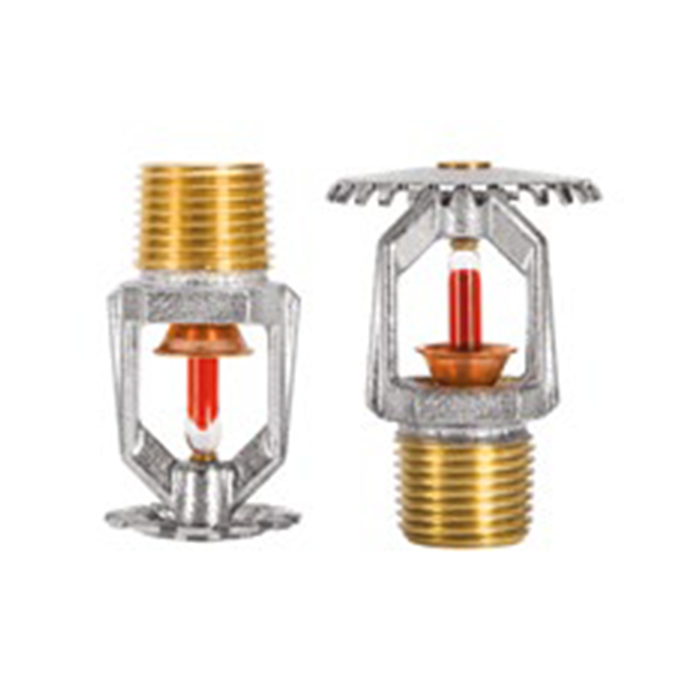

| Model Series | Tyco TY-B Sprinklers |
| Operating element | 5 mm Bulb |
| Response | Standard Response, Standard Coverage |
| Thread size | 1/2″, 3/4″ |
| K-Factor | 2.8, 5.6, 8.0 |

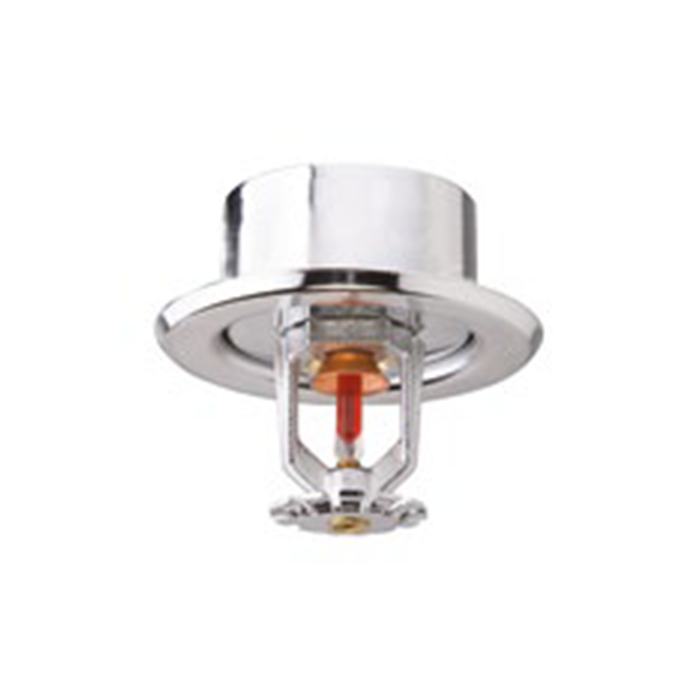

| Orientation | Pendent, Upright, Horizontal and Vertical Sidewall |
| Temperature Ratings °F | 135, 155, 175, 200, 286, 360 |
| Maximum Working Pressure | 175, 250 psi |
| Finish Options | B, C, SW, W, L, WOL, JB, PW |
| Compliance | UL, C-UL, FM, LPCB, NYC |
| Reference Datasheet | TFP151, TFP152, TFP161 |
Product specifications, approvals, and availability are subject to change without notice.
Always refer to the latest Tyco Fire Protection Products datasheets for complete and current information.
