| Property | Specification |
|---|---|
| Brand | Tyco |

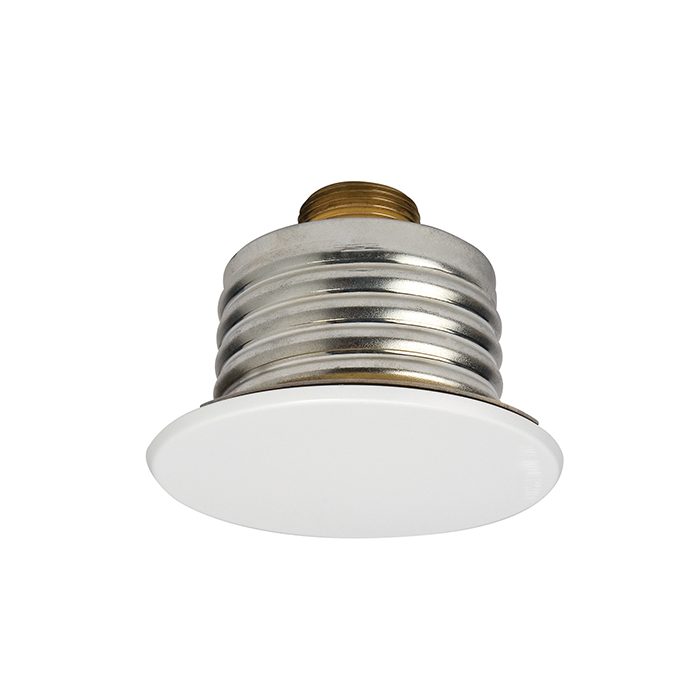

| Model Series | Tyco ILLUSION Sprinklers |
| Operating element | Solder |
| Response | Quick Response, Standard Coverage |
| Thread size | 3/4″ |
| K-Factor | 8.0 |
| Orientation | Extra Large Orifice Concealed Pendent |
| Temperature Ratings °F | 160, 212 |
| Maximum Working Pressure | 175 psi |
| Finish Options | Refer Data Sheet Ordering Procedure |
| Compliance | UL, C-UL |
| Reference Datasheet | TFP184 |
Product specifications, approvals, and availability are subject to change without notice.
Always refer to the latest Tyco Fire Protection Products datasheets for complete and current information.
