| Property | Specification |
|---|---|
| Brand | Tyco |
| Model Series | Tyco TY-FRL Sprinklers |
| Operating element | Solder |
| Response | Quick Response, Standard Coverage |
| Thread size | 1/2″, 3/4″ |
| K-Factor | 2.8, 5.6, 8.0 |

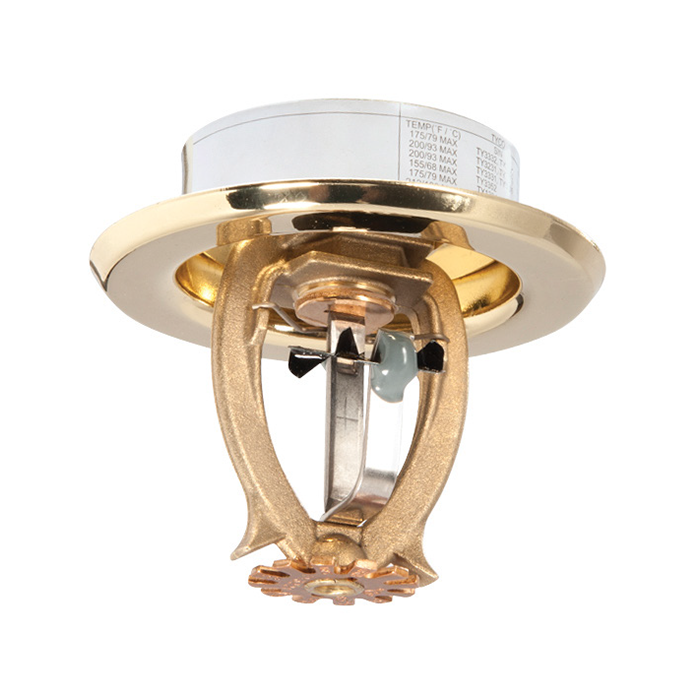

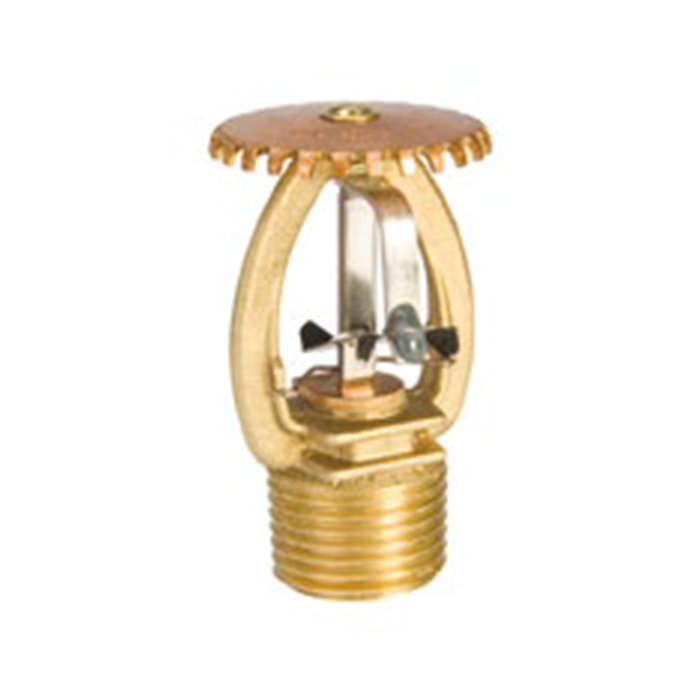

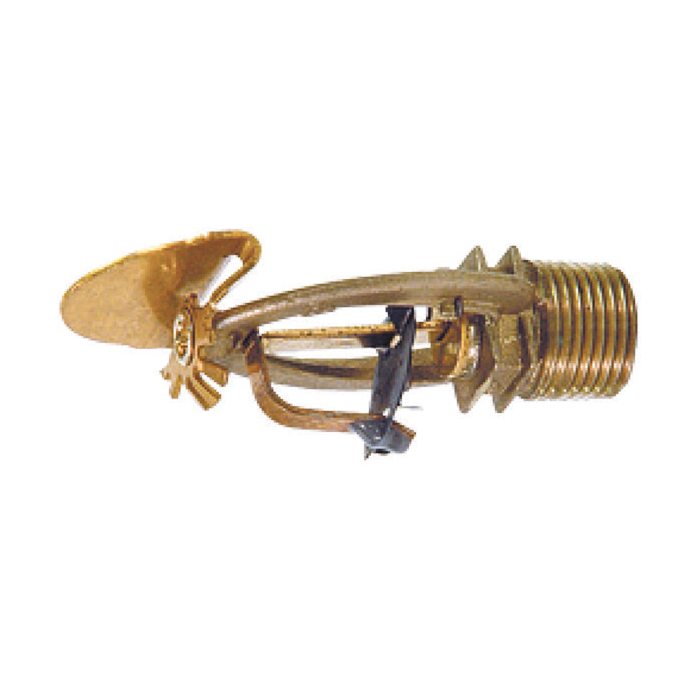

| Orientation | Pendent, Upright, Horizontal Sidewall |
| Temperature Ratings °F | 165, 212 |
| Maximum Working Pressure | 175 psi (12 bar) |
| Compliance | UL, C-UL, NYC |
| Reference Datasheet | TFP130, TFP140 |
Product specifications, approvals, and availability are subject to change without notice.
Always refer to the latest Tyco Fire Protection Products datasheets for complete and current information.
