| Property | Specification |
|---|---|
| Brand | Tyco |

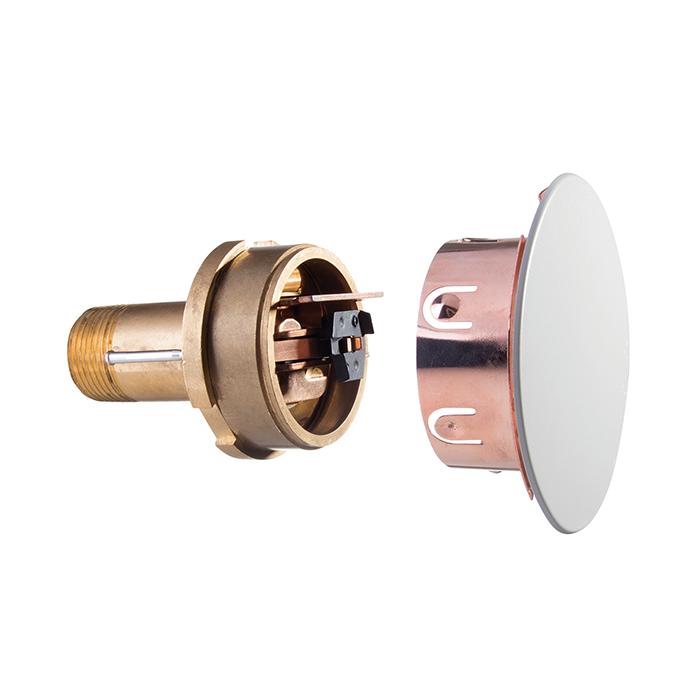

| Model Series | Tyco RFllI Sprinklers |
| Operating element | Solder |
| Response | Quick Response, Extended Coverage |
| Thread size | 3/4″ |
| K-Factor | 8 |
| Orientation | Flat Plate Concealed Horizontal |
| Temperature Ratings °F | 160 |
| Maximum Working Pressure | 175 psi (12 bar) |
| Finish Options | Refer Data Sheet Ordering Procedure |
| Compliance | UL, C-UL |
| Reference Datasheet | TFP270 |
Product specifications, approvals, and availability are subject to change without notice.
Always refer to the latest Tyco Fire Protection Products datasheets for complete and current information.
