| Property | Specification |
|---|---|
| Brand | Tyco |

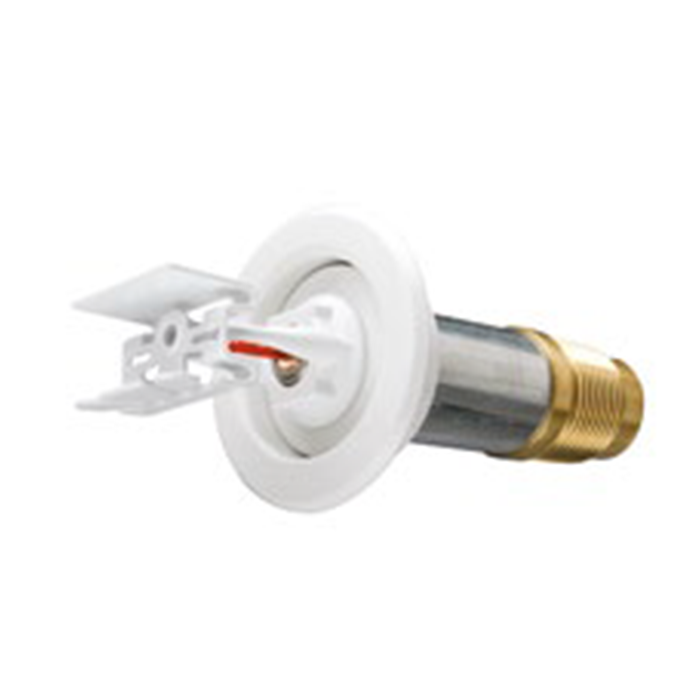

| Model Series | Tyco SW ECOH Sprinklers |
| Operating element | 3 mm Bulb |
| Response | Standard Response, Extended Coverage |
| Thread size | 3/4″ |
| K-Factor | 11.2 |
| Orientation | Horizontal Sidewall |
| Temperature Ratings °F | 155, 200 |
| Maximum Working Pressure | 175 psi |
| Finish Options | B, C, SW |
| Compliance | UL, C-UL, NYC |
| Reference Datasheet | TFP230 |
Product specifications, approvals, and availability are subject to change without notice.
Always refer to the latest Tyco Fire Protection Products datasheets for complete and current information.
