| Property | Specification |
|---|---|
| Brand | Tyco |

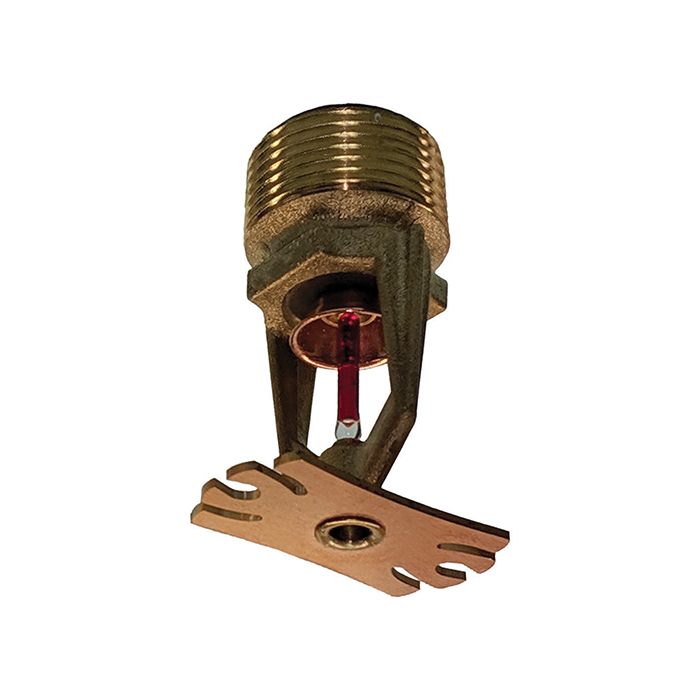

| Model Series | Tyco EC-8 Sprinklers |
| Operating element | 3 mm Bulb |
| Response | Extended Coverage |
| Thread size | 3/4″ |
| K-Factor | 8.0 |

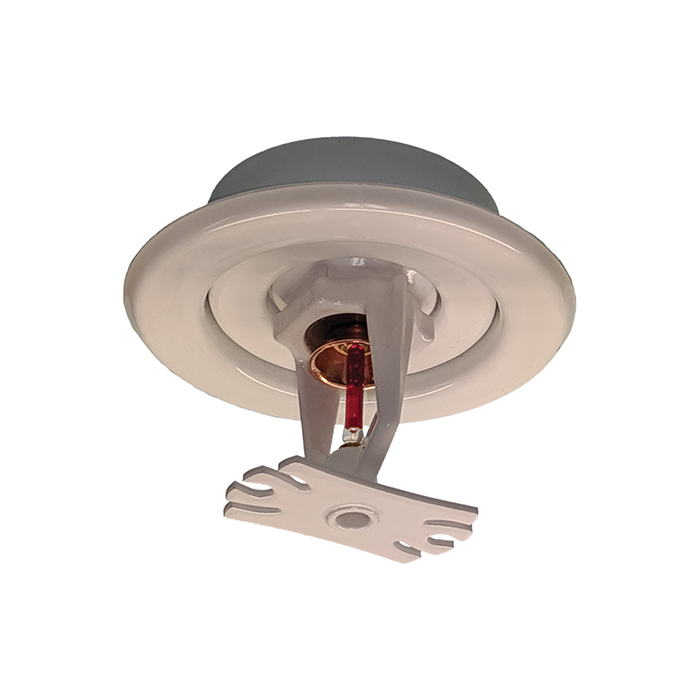

| Orientation | Pendent and Recessed Penden |
| Temperature Ratings °F | 155, 200 |
| Maximum Working Pressure | 175 psi, 200 psi |
| Finish Options | B, C, SW, PW, JB |
| Compliance | UL, C-UL, FM, NYC |
| Reference Datasheet | TFP223, TFP226 |
Product specifications, approvals, and availability are subject to change without notice.
Always refer to the latest Tyco Fire Protection Products datasheets for complete and current information.
