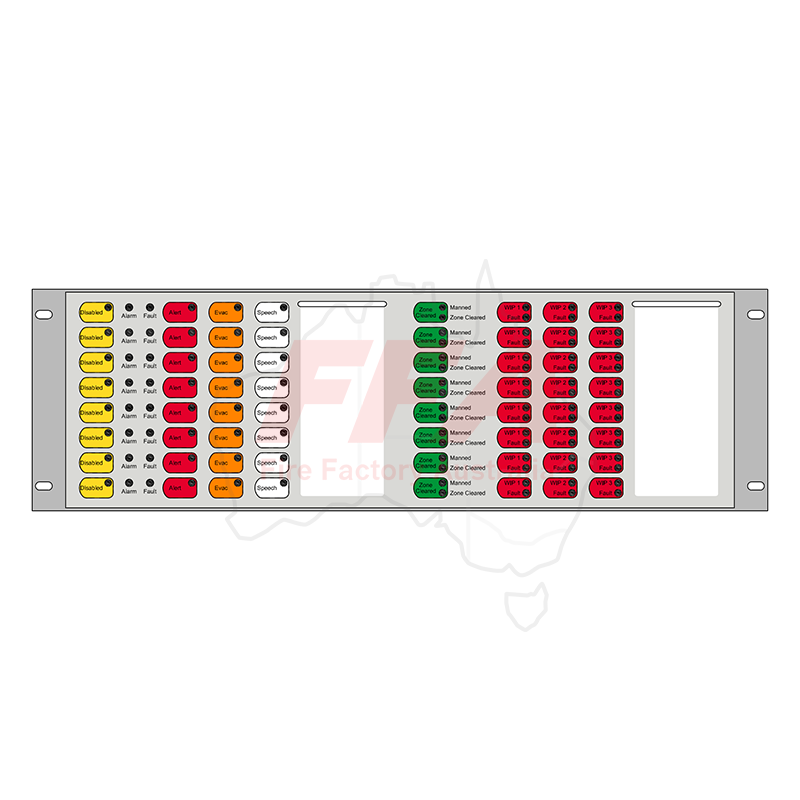

Extender user interface for QE20 inner door. Provides 8 Zone controls + 8 WIP controls in one 3U module. Connects to the Master User Interface (MUI) or previous extender using a 4-way Power/Comms (UBus) loom. Used for expansion or replacement.
| Models | SMX+650-1L-PS5, SMX+900-1L-PS5, SMX+900-1L-PS11, SMX+650-1L-PS11GL, SMX+12U1LPS11, SMX+28U1LPS11, SMX+40U1LPS11, SMX+40U1LPS11, LCM-320, LEM-320 |
|---|
| Product Code | FP2011 |
|---|---|
| Product Name | QE20 8Z/8WIP Extender User Interface Module |
| Main Function | Provides 8 Zone controls and 8 WIP controls (buttons + LEDs) for QE20 |
| Mounting Location | QE20 inner door, 3U position |
| Mounting Hardware | 4 × M4 × 10 screws |
| Internal Connection | 4-way Power/Comms loom (connects to previous extender or to MUI MKI J2/J3) |
| Earth Requirement | Must be earthed to cabinet frame (earth daisy-chain between UI modules/blank panels) |
| Addressing | UBus address via rotary switches (per 8Z/8WIP PCB) |
| Row Mapping | Bottom row = (Address − 1) × 8 + 1 Top row = (Address − 1) × 8 + 8 |
| Power Supply | 18–32V DC |
| Current (per 8 Zone / 8 WIP PCB) | 5mA typ @ 24V (all LEDs off) 32mA typ @ 24V (all LEDs on) |
| LED Indicators (rear, per PCB) | POWER/LINK (green) SYSTEM FAULT (yellow) |
| Field Wiring | None |
| Kit Contents | 1 × Extender UI module 1 × 4-way Power/Comms loom (475mm) 4 × M4 × 10 screws 2 × LB0694 slide-in labels (zone/WIP) 2 × cable ties 1 × earth loom (450mm) 1 × LT0707 installation instructions |
| Operating Conditions | -5°C to +45°C, 10% to 93% RH (non-condensing) |
