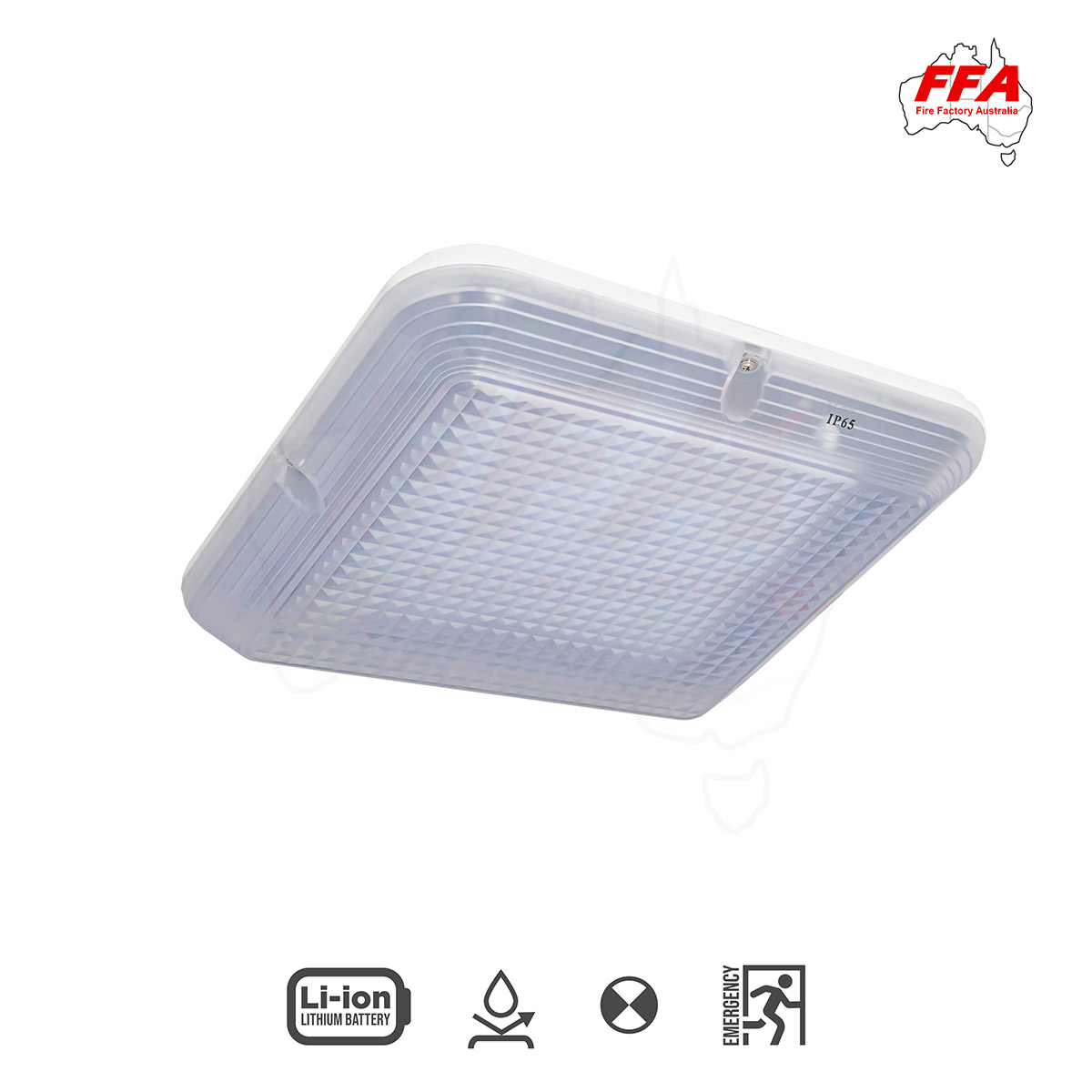

FFA-WPSEL – 25W LED Square Weatherproof- Emergency Light

Sale!

FFA-WPSEL – 25W LED Square Weatherproof- Emergency Light

Description

The FFA-WPSEL – 25W LED Square Weatherproof Emergency Light is a high-performance, energy-efficient emergency lighting solution built to withstand harsh and outdoor environments. Featuring a durable IP-rated weatherproof housing, this light ensures reliable illumination during normal operation and automatic emergency backup in power outages.

Ideal for car parks, warehouses, loading bays, stairwells, and external walkways, the FFA-WPSEL delivers consistent, bright output from a 25W high-efficiency LED, while complying with AS/NZS 2293 emergency lighting standards. Its low-profile square design allows for seamless surface mounting on walls or ceilings.

Key Features:

  • 25W energy-efficient LED for bright and uniform illumination

  • Integrated emergency backup for continued operation during power failure

  • IP-rated weatherproof housing – suitable for outdoor and industrial settings

  • Sleek square design for surface ceiling or wall mounting

  • Long-life, low-maintenance LED technology

  • Fully compliant with AS/NZS 2293 emergency lighting standards

  • Ideal for commercial, public, and high-exposure environments

Specifications

Product Name FFA-WPSEL – 25W LED Square Weatherproof- Emergency Light
Model No FFA-WPSEL
Dimensions 315mm x 95mm
Colour Temperature (CCT) 6000K
Colour Rendering Index (CRI / Ra) >80
Input Voltage 220-240V AC
Input Current 300mA
LED Model 2835
LED Quantity 144 PCS
Luminous Flux >2200Lm
Base Angle 120°
Emergency Power 2-4W
Emergency Duration >3 HOURS
Emergency Output Voltage DC 24V±10%
Emergency Output Current 145mA±10%
Emergency Interface HAVE
Battery Type Lithium Battery
Battery Capacity 3.7V 4400mAh
Charging Voltage 4.2V±0.2V
Charging Current 300mA
Charger Power 1W
Charging Time >24 HOURS
IP Rating IP65
Max Ambient Temp -20~50°C
LED Lifetime 50,000 hours
Standard AS 2293.3
Warranty 3 Years Replacement Warranty

Technical Documents

Download IES File
