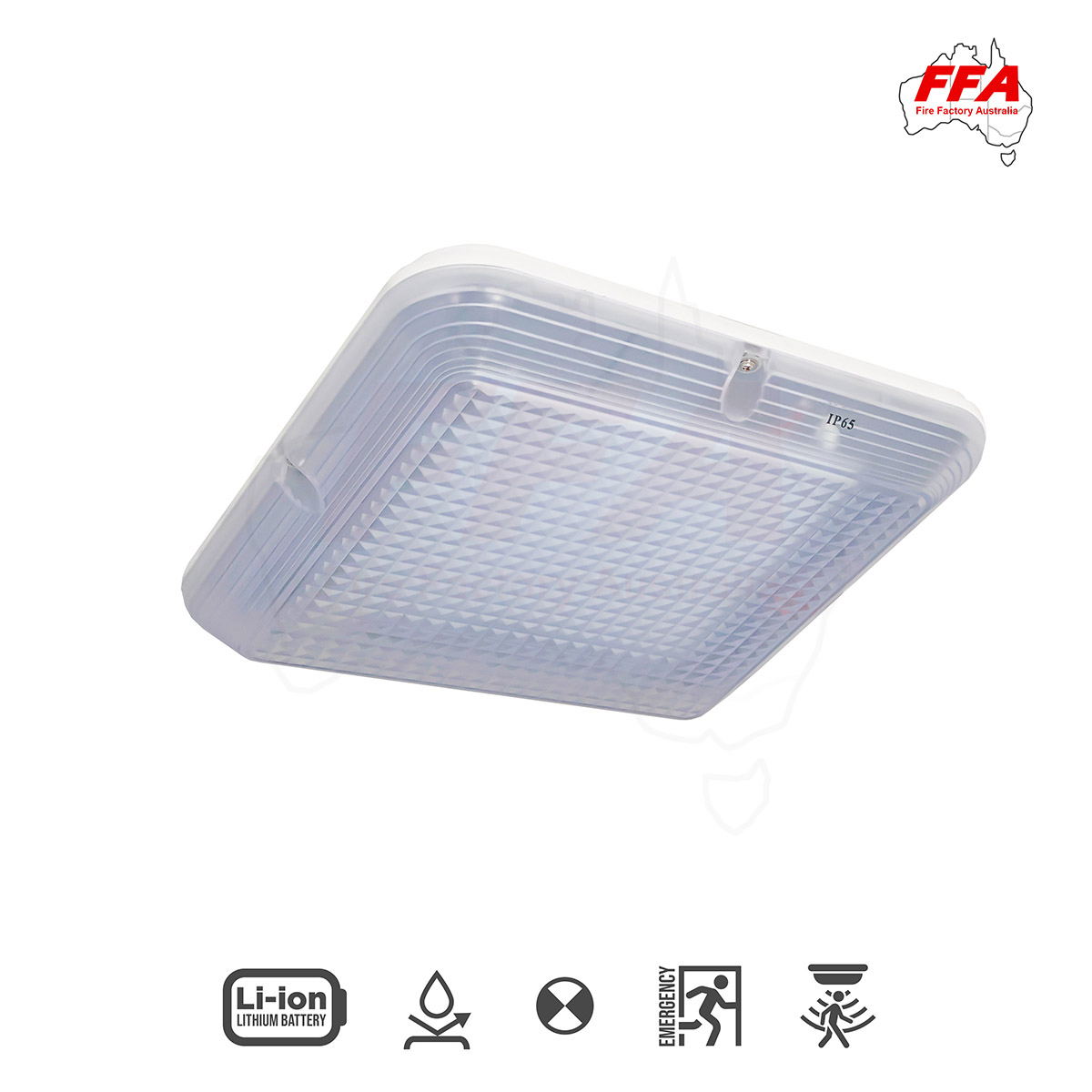

FFA-SWP25W – 25W LED Square Weatherproof EM Light with Sensor

FFA-SWP25W – 25W LED Square Weatherproof EM Light with Sensor

Description

The FFA-SWP25W – 25W LED Square Weatherproof Emergency Light with Sensor is a heavy-duty lighting solution designed for reliable performance in outdoor and harsh indoor environments. Combining powerful illumination with emergency backup and motion sensor functionality, this fixture is ideal for areas requiring safety, security, and compliance with AS/NZS 2293.

Built with a weatherproof (IP-rated) housing and a robust square design, the FFA-SWP25W is perfect for car parks, loading docks, stairwells, covered walkways, and building exteriors. The integrated PIR motion sensor enhances energy efficiency and security by activating the light only when movement is detected.

Key Features:

  • 25W high-efficiency LED for bright, uniform lighting

  • Integrated emergency backup ensures illumination during power loss

  • PIR motion sensor for automatic activation and energy savings

  • Weatherproof, durable housing – ideal for outdoor and industrial use

  • Square low-profile design with easy surface mounting

  • Fully compliant with AS/NZS 2293 emergency lighting standards

  • Perfect for car parks, external corridors, stairwells, and warehouses

Specifications

Product Name FFA-SWP25W – 25W LED Square Weatherproof EM Light with Sensor
Model No FFA-SWP25W
Brand FFA
Installation Type Wall / Ceiling Mount

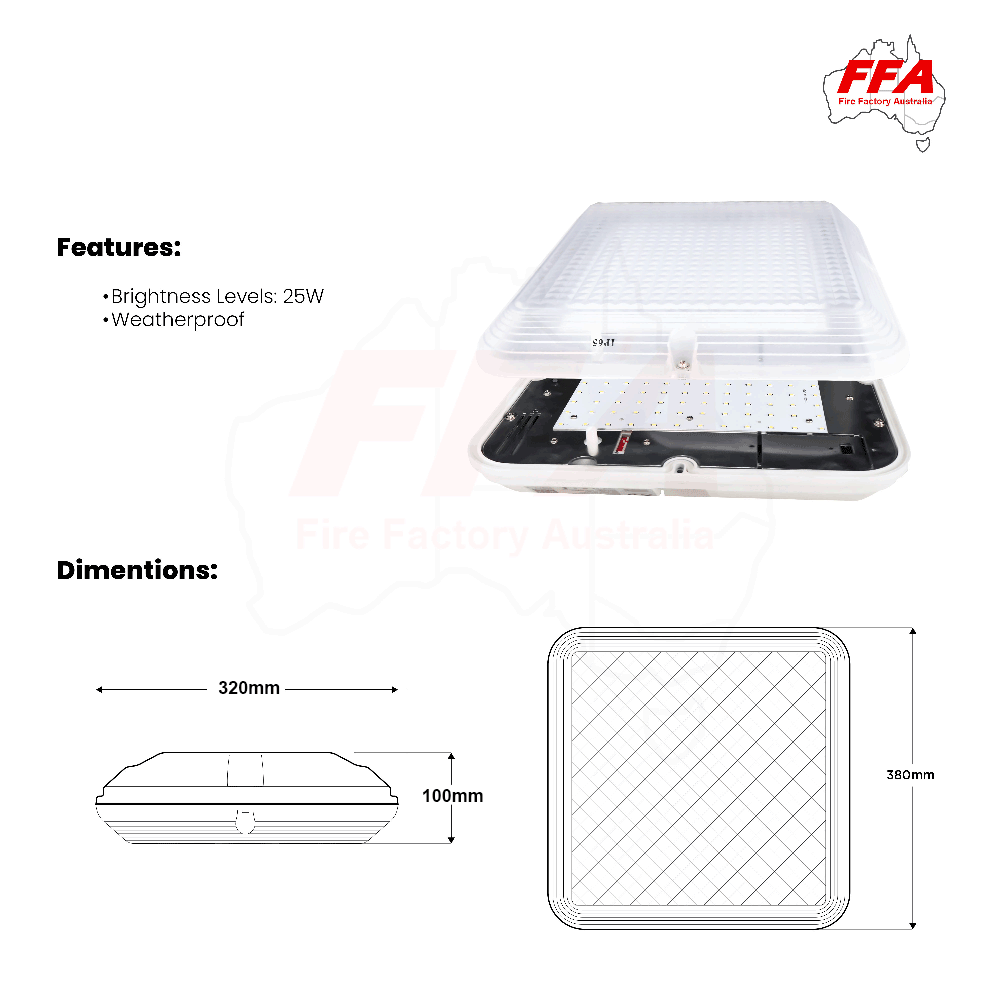

Dimensions 315mm x 95mm
Colour Temperature (CCT) 6000K
Colour Rendering Index (CRI / Ra) >80
Wattage 25W
Input Voltage 220-240V AC
Input Current 120mA
LED Model 2835
LED Quantity 144 pcs
Luminous Flux >2750Lm

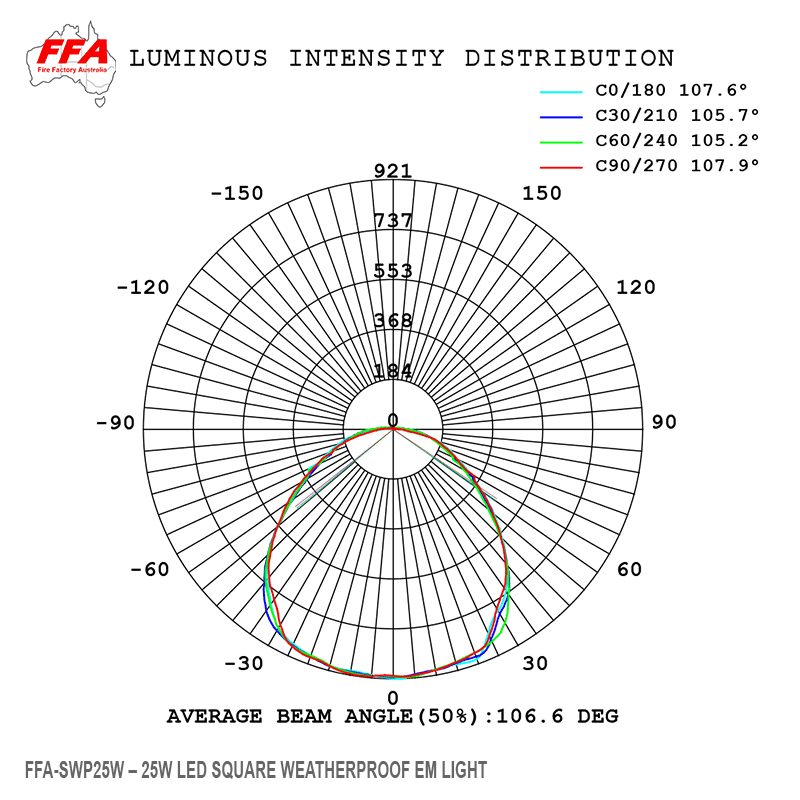

Base Angle 110°
Emergency Power 3W
Emergency Duration >3 Hours
Emergency Output Voltage DC 36V
Emergency Output Current 65mA Max
Emergency Interface Yes
Battery Type Lithium
Battery Capacity 9.6V 1.5Ah
Charging Voltage 10.2V
Charging Current 380mA
Charger Power 5W
Charging Time >24 Hours
IP Rating IP65
Max Ambient Temp -20°C ~ +65°C
LED Lifetime 50,000 Hours
Standard AS2293.3
Warranty 3 Years

Technical Documents

Download IES File
