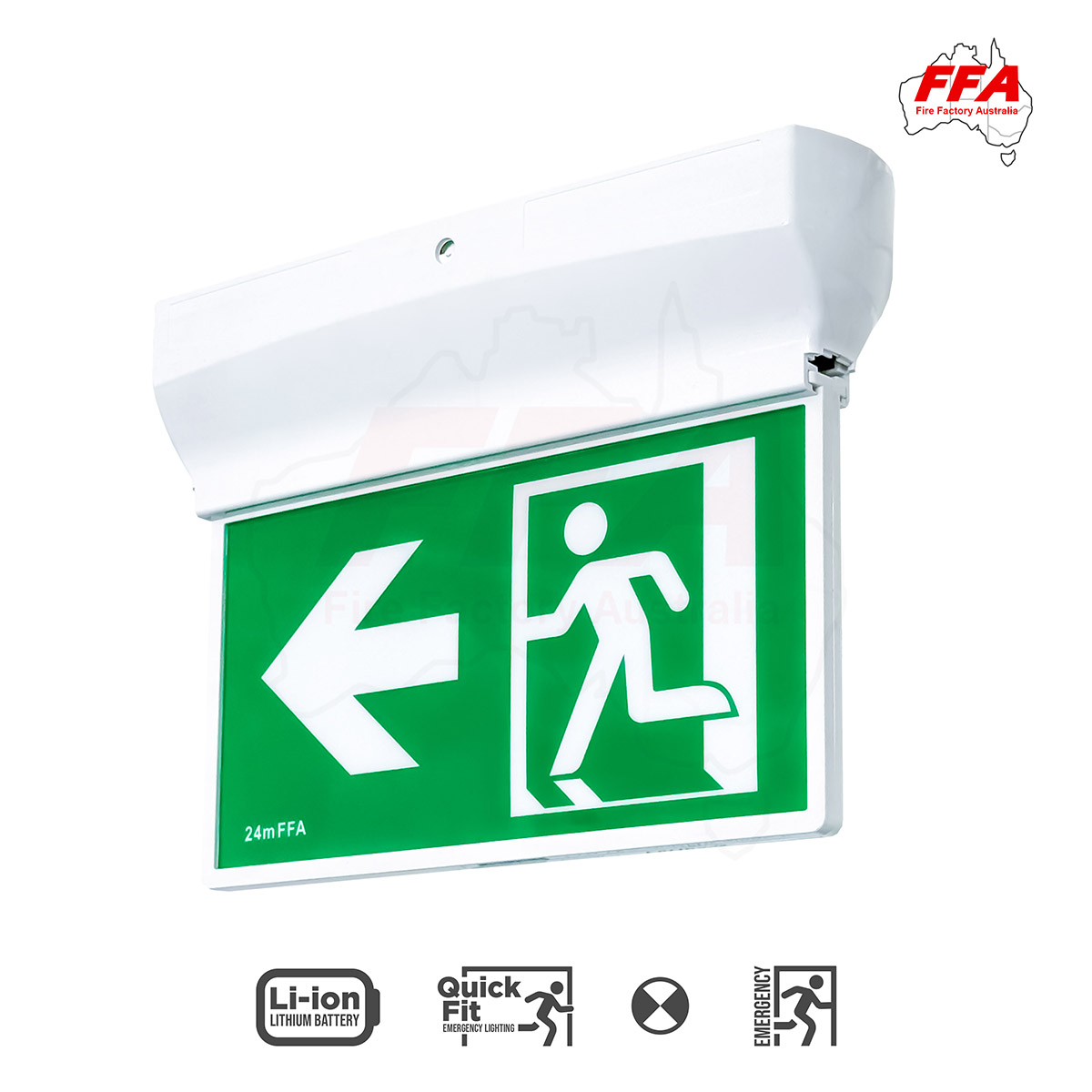

EXQB4W – 4W LED Quickfit Blade Exit Light

EXQB4W – 4W LED Quickfit Blade Exit Light

Description

The EXQB4W – 4W LED Quickfit Blade Exit Light is a reliable and easy-to-install emergency exit sign designed for indoor use. It delivers clear illumination with energy-efficient LED technology and meets Australian emergency lighting standards.

Key Features

  • 4W LED edge-lit blade design
  • 24m viewing distance
  • 3-hour emergency duration
  • Lithium-ion battery (3.7V / 2600mAh)
  • 24-hour charge time
  • Wall or ceiling mountable
  • Maintained operation mode
  • Manual test button
  • IP20 rated, Class 1
  • Approved to AS/NZS 2293.3
  • 5-year warranty (excluding battery)

Additional information

Select Quantity

Box (6 Piece), Single Piece

Specifications

Product Name EXQB4W – 4W LED Quickfit Blade Exit Light
Model No EXQB4W
Brand FFA
Type LED Exit Light (Blade Type)
Installation Type Ceiling / Wall Mounted
Viewing Distance 24 m
Dimensions 355mm × 80mm × 255mm
Colour Temperature (CCT) 7000K–7500K
Colour Rendering Index (CRI / Ra) ≥75
Wattage 4W
Classification Class 1
Input Voltage 220–240V AC
Frequency 50/60Hz
Input Current 100mA
Power Supply 220–240V AC
LED Model 2835
LED Quantity 24 pcs
Luminous Flux 112 lm
Base Angle 120°
Emergency Power 4W
Emergency Duration >3 Hours
Emergency Output Voltage DC 12V ±10%
Emergency Output Current 300mA ±10%
Emergency Interface Yes
Battery Type Li-ion/18650
Battery Capacity 3.7V 2600mAh
Charging Voltage 4.2V ±0.2V
Charging Current 230mA
Charger Power 2W
Charging Time 24 Hours
Charger Operation Continuous
IP Rating IP20
Max Ambient Temp 40°C
Electrical Class Class 1
LED Lifetime 3 Years (Average)
Standard AS/NZS 2293.3
Warranty 5 Years (excluding battery)

Technical Documents

Download Product Guide
Download IES File
