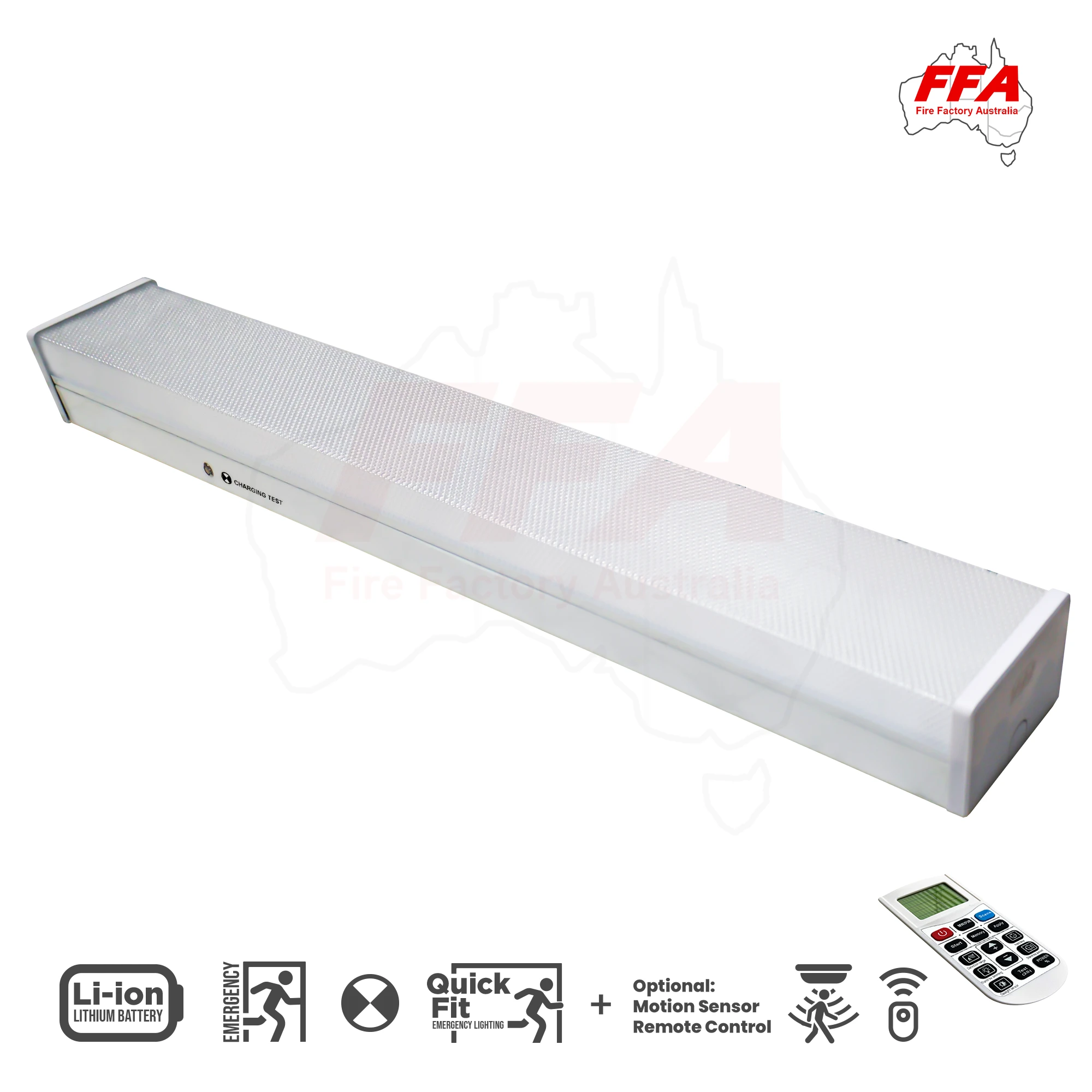

FFA-LEM220 – 2x20w 4 foot LED Emergency Light

Sale!

FFA-LEM220 – 2x20w 4 foot LED Emergency Light

Description

The FFA-LEM220 – 2×20W 4 Foot LED Emergency Light is a high-performance emergency lighting batten designed for commercial, industrial, warehouse, and plant facilities requiring reliable illumination during power outages. Featuring dual 20W high-efficiency LED modules, this emergency batten delivers bright, uniform lighting, ensuring safe evacuation and visibility when mains power fails.

Engineered for durability and long service life, the FFA-LEM220 offers low-energy consumption, robust construction, and full compliance with AS/NZS 2293 emergency lighting standards, making it an ideal choice for essential lighting installations across demanding environments.

Key Features:

  • Twin 20W LED modules for powerful emergency illumination

  • 4-foot (1200mm) batten providing wide lighting coverage

  • Energy-efficient LED technology for long-lasting performance

  • Suitable for commercial, industrial, warehouse, and plant applications

  • AS/NZS 2293 compliant for emergency lighting safety

  • Reliable automatic emergency operation during power failure

  • Slimline design for easy installation in a wide range of locations

Additional information

Select Quantity

Box (6 Piece), Single Piece

Specifications

Product Name FFA-LEM220 – 2x20w 4 foot LED Emergency Light
Model No FFA-LEM220
Brand FFA
Dimensions 1226mm x 122mm x 91mm
Colour Temperature (CCT) 4000K/5000K/6000K
Colour Rendering Index (CRI / Ra) ≥80
Power Selectable 25W / 30W / 36W
Input Voltage 220-240V AC
Input Current 250mA / <250mA
LED Model 2835
LED Quantity 192 PCS
Luminous Flux 550Lm
Base Angle 120° / 360°
Emergency Power 2-5W
Emergency Duration >3 HOURS
Emergency Output Voltage 23V+10% / 23V ±10%
Emergency Output Current 135mA+10% / 135mA ±10%
Emergency Interface HAVE
Battery Capacity 3.7V 4400mAh
Charging Voltage 8.3V+ 0.2V / 8.3V±0.2V
Charging Current <250mA / ≤250mA
Charger Power 2W
Charging Time >24 HOURS / ≥24 hours
Max Ambient Temp -20~50°C / -20~+50°C
LED Lifetime 50,000 hours
Standard AS 2293.3
Warranty 3 Years Replacement Warranty

Technical Documents

Download IES File
