| Property | Specification |
|---|---|
| Brand | Tyco |

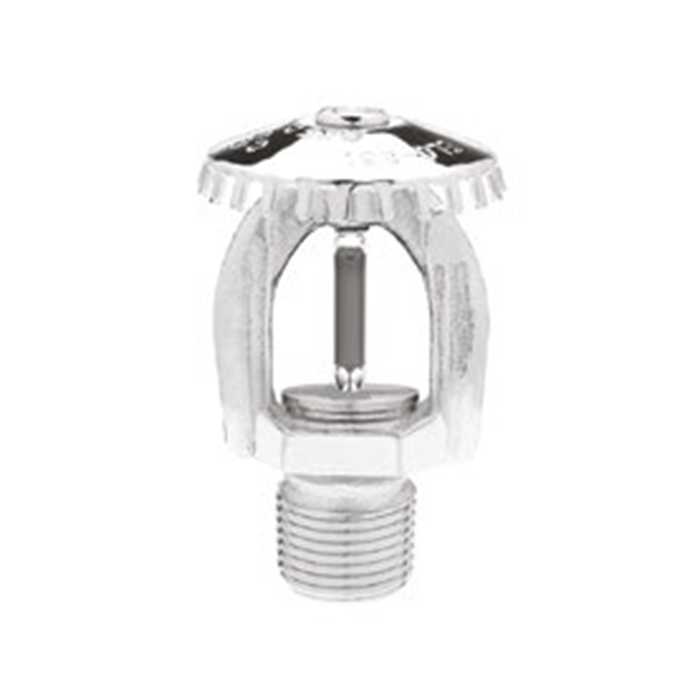

| Model Series | Tyco ELO-231B Sprinklers |
| Operating element | 5 mm Bulb |
| Response | Standard Response, Standard Coverage |
| Thread size | 1/2″, 3/4″ |
| K-Factor | 11.2 |
| Orientation | Upright and Pendent |
| Temperature Ratings °F | 155, 200, 286 |
| Maximum Working Pressure | 175 psi (12 bar) |
| Finish Options | B, C, L, W, WOL |
| Compliance | UL, C-UL, FM, NYC |
| Reference Datasheet | TFP342 |
Product specifications, approvals, and availability are subject to change without notice.
Always refer to the latest Tyco Fire Protection Products datasheets for complete and current information.
