| Property | Specification |
|---|---|
| Brand | Tyco |

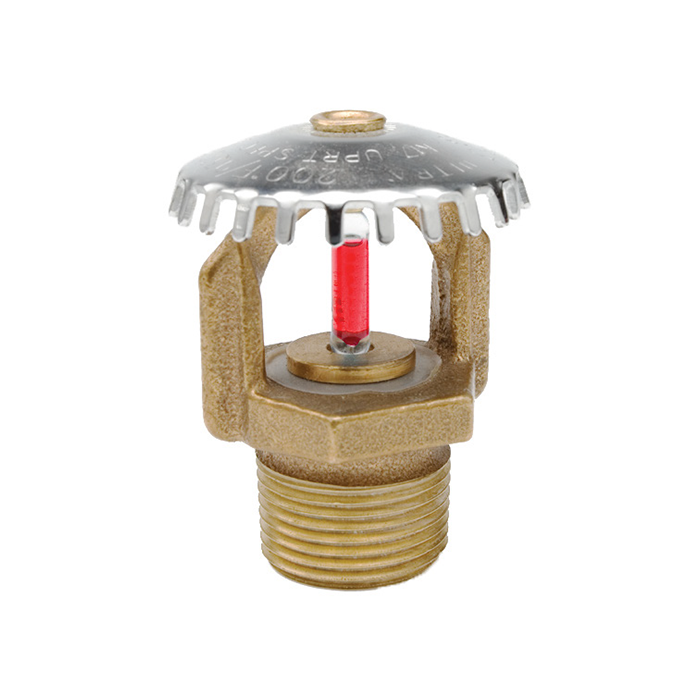

| Model Series | Tyco Ultra K17 Sprinklers |
| Operating element | 5 mm Bulb |
| Response | Standard Response |
| Thread size | 3/4″ |
| K-Factor | 16.8 |
| Orientation | Upright Control Mode |
| Temperature Ratings °F | 155, 200 |
| Maximum Working Pressure | 175 psi (12 bar) |
| Compliance | UL, C-UL, FM, NYC |
| Reference Datasheet | TFP330 |
Product specifications, approvals, and availability are subject to change without notice.
Always refer to the latest Tyco Fire Protection Products datasheets for complete and current information.
