| Property | Specification |
|---|---|
| Brand | Tyco |

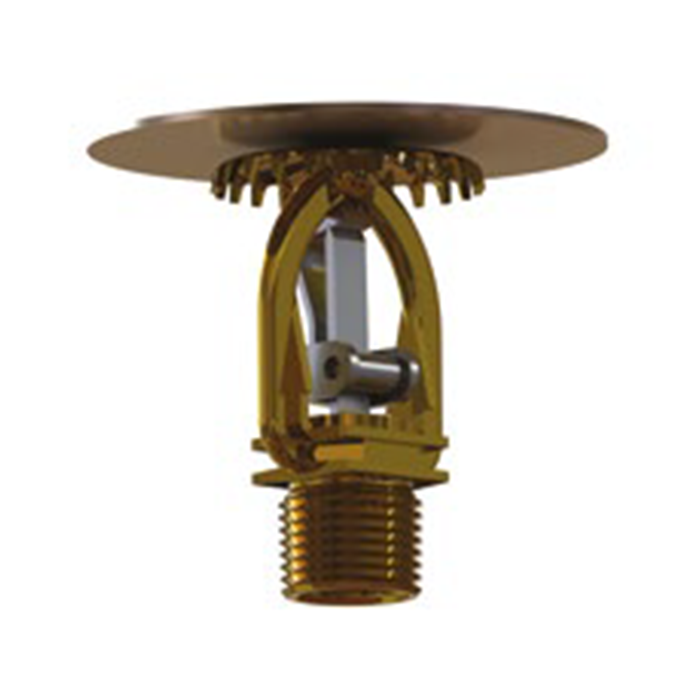

| Model Series | Tyco TY-L Storage Sprinklers |
| Operating element | Solder |
| Response | Standard Response |
| Thread size | 1/2″, 3/4″ |
| K-Factor | 5.6, 8.0 |
| Orientation | Upright and Pendent Intermediate Level Sprinklers |
| Temperature Ratings °F | 165, 212, 280 |
| Maximum Working Pressure | 175 psi (12 bar) |
| Compliance | UL, C-UL, FM |
| Reference Datasheet | TFP350 |
Product specifications, approvals, and availability are subject to change without notice.
Always refer to the latest Tyco Fire Protection Products datasheets for complete and current information.
