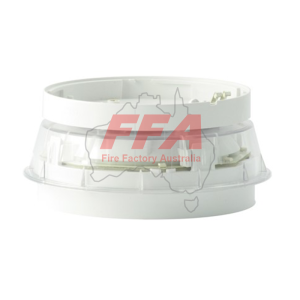

Honeywell BRS-PC-I00 Standard Intelligent Detector Base Sounder Strobe (VAD)
The Honeywell BRS-PC-I00 Standard Intelligent Detector Base Sounder Strobe is a loop-powered audible and visual alarm device designed for use with compatible System Sensor addressable fire alarm systems. Combining a high-performance sounder with an EN54-23 certified visual alarm device (VAD), it provides effective occupant notification while simplifying installation through an integrated detector base design.
Certified to EN54-3, EN54-17, and EN54-23, the BRS-PC-I00 delivers a sound output of up to 96 dB(A) ±3 dB at 1 metre and features a high-intensity red strobe with a 0.5 Hz flash rate in EN54-23 mode. The device also supports 1 Hz Legacy mode operation where applicable and offers approved EN54-23 coverage ratings of C-3-8.5 and O-1-3.
Designed for reliable performance, the BRS-PC-I00 is loop-powered, eliminating the need for a separate power supply. It is compatible with the B501AP low-profile detector base, making it an ideal solution for modern addressable fire alarm installations.
Key Features:
- Genuine Honeywell / System Sensor standard detector base sounder strobe
- Loop-powered audible and visual alarm device (VAD)
- Certified to EN54-3, EN54-17 and EN54-23
- Sound output up to 96 dB(A) ±3 dB at 1 metre
- Red strobe with 0.5 Hz flash rate in EN54-23 mode
- Supports 1 Hz Legacy mode operation
- EN54-23 coverage ratings: C-3-8.5 and O-1-3
- Low standby current for efficient addressable loop operation
- Compatible with the B501AP low-profile detector base
- Pure white finish for professional installations
Typical Applications:
- Commercial office buildings
- Hospitals and healthcare facilities
- Schools and universities
- Hotels and accommodation
- Retail centres
- Public buildings
- Industrial facilities
The Honeywell BRS-PC-I00 Standard Intelligent Detector Base Sounder Strobe provides dependable audible and visual alarm notification while integrating seamlessly with compatible addressable fire alarm systems, helping to improve occupant awareness during emergency situations.
