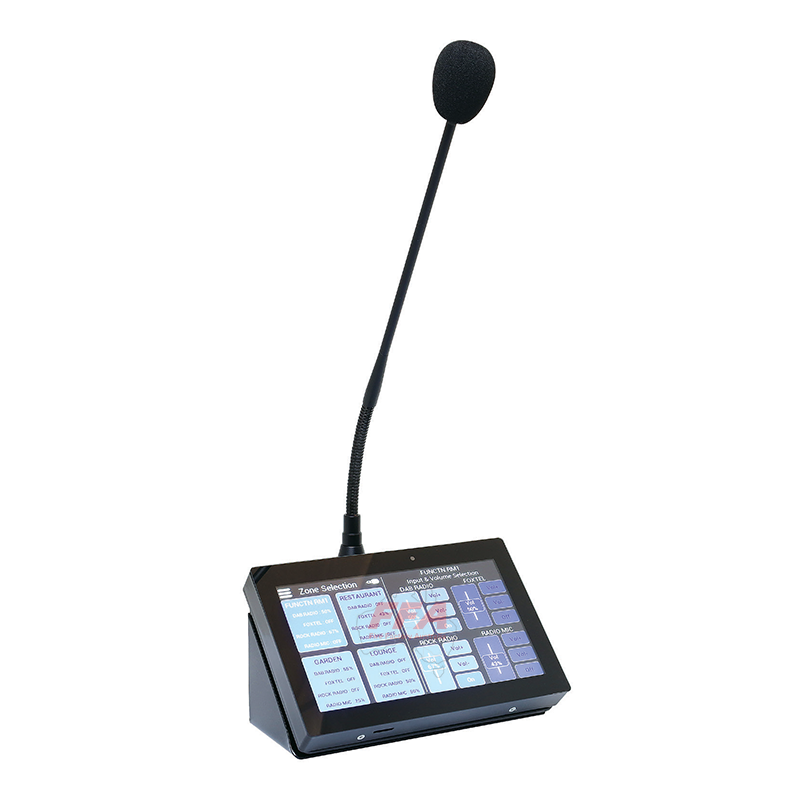

A4660 Paging Console is a digital paging console for Redback® public address systems.
It is supplied blank and must be configured before use.
On newer Redback® systems, setup is automatic and only needs user confirmation.
The console connects to the master unit using a pin-to-pin RJ45 cable and supports firmware updates via Micro SD card.
| Models | SMX+650-1L-PS5, SMX+900-1L-PS5, SMX+900-1L-PS11, SMX+650-1L-PS11GL, SMX+12U1LPS11, SMX+28U1LPS11, SMX+40U1LPS11, SMX+40U1LPS11, LCM-320, LEM-320 |
|---|
| Model | A4660 Paging Console |
|---|---|
| Function | Digital paging console for Redback® master units |
| Configuration | Supplied blank, configurable via Micro SD card |
| Auto Detection | Supported on newer Redback® systems |
| Compatible Master Units | A4450, A4460, A4580 (legacy) |
| Connection Type | RJ45 pin-to-pin (Straight-through) |
| Cable Standard | 568A straight-through, Cat5 / Cat6 |
| RJ45 Pinout | Pin 1: TX+ Pin 2: TX- Pin 3: RX+ Pin 6: RX- Pins 4, 5, 7, 8: Not used |
| Firmware Update | Via Micro SD card (.bin file) |
| Supplied Accessories | Short Cat6 patch lead (for setup) |
