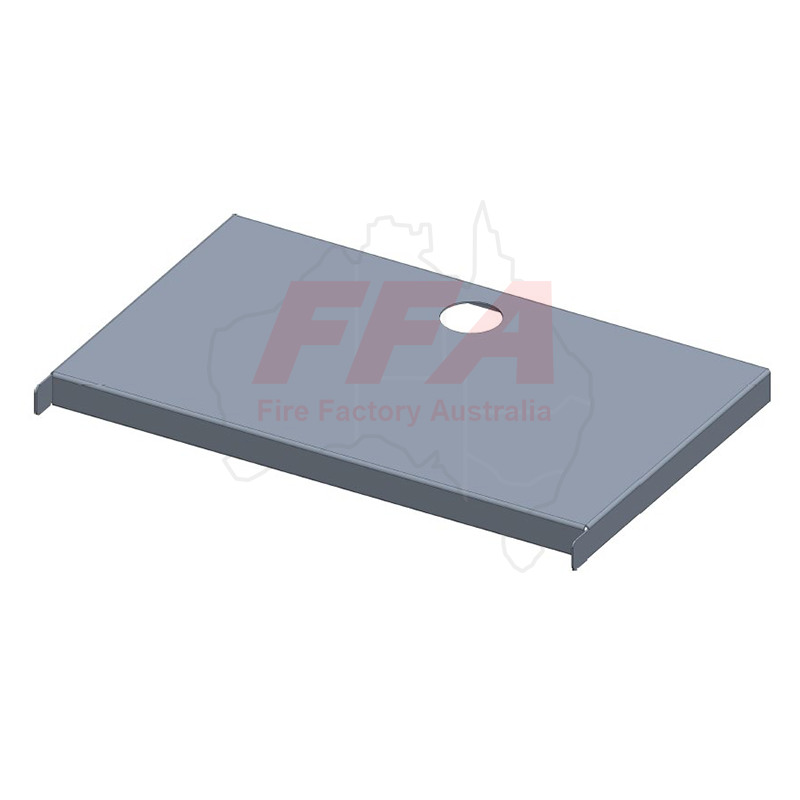

Metal battery support shelf for QE20 40U deep cabinets. Used when extra batteries are required, especially in combo panels (Fire panel + QE20 in one cabinet). The shelf holds the upper battery set, while QE20 batteries are mounted below the shelf.
| Models | SMX+650-1L-PS5, SMX+900-1L-PS5, SMX+900-1L-PS11, SMX+650-1L-PS11GL, SMX+12U1LPS11, SMX+28U1LPS11, SMX+40U1LPS11, SMX+40U1LPS11, LCM-320, LEM-320 |
|---|
| Product Code | FP2020 |
|---|---|
| Product Name | QE20 Battery Shelf |
| Main Function | Provides a second battery mounting level in QE20 40U deep cabinets, mainly for combo fire panel + QE20 installations |
| Cabinet Compatibility | QE20 40U deep cabinet only Not suitable for 28U or shallow cabinets |
| Typical Applications | Simplex / QE20 combo panels MX1 / QE20 combo panels Large QE20 battery configurations |
| Battery Capacity | Up to 3 × 75Ah batteries or 1 × 100Ah battery |
| Battery Arrangement | Fire panel batteries on shelf QE20 batteries mounted below shelf |
| Mounting Method | Slides into pre-formed rack slots and rear cabinet louvers |
| Cable Management | 51 mm cable entry hole for battery leads |
| Material | 1.6 mm Zintec steel Powder-coated grey (PR12/816C gloss) |
| Internal Wiring | Battery leads routed through rear shelf opening |
| Kit Contents | 1 × QE20 Battery Shelf (ME0630) Installation instructions (LT0716) |
