| Property | Specification |
|---|---|
| Brand | Tyco |

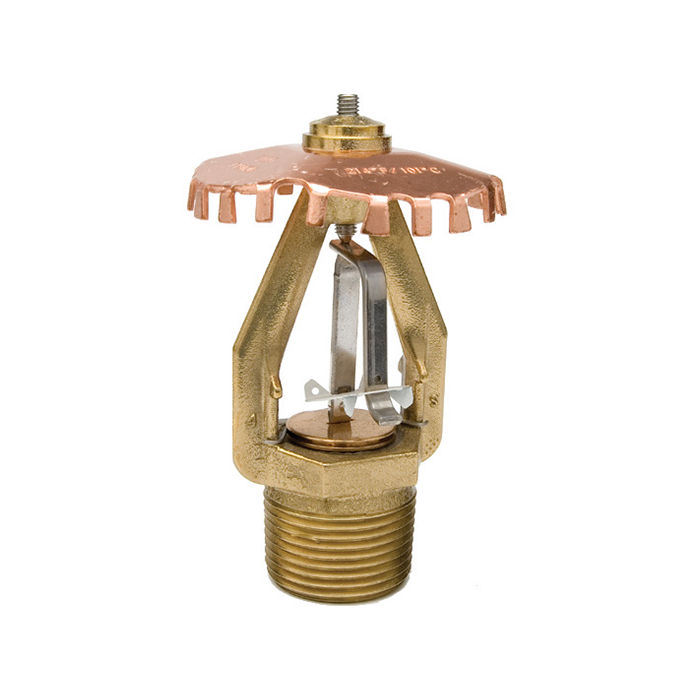

| Model Series | Tyco EC-25 Sprinklers |
| Operating element | Solder |
| Response | Extended Coverage |
| Thread size | 1″ |
| K-Factor | 25.2 |
| Orientation | Upright |
| Temperature Ratings °F | 165, 212 |
| Maximum Working Pressure | 175 psi (12 bar) |
| Compliance | UL, C-UL, FM, NYC |
| Reference Datasheet | TFP213 |
Product specifications, approvals, and availability are subject to change without notice.
Always refer to the latest Tyco Fire Protection Products datasheets for complete and current information.
