| Property | Specification |
|---|---|
| Brand | Tyco |
| Model Series | Tyco Issue D QUARTZOID Sprinklers |
| Operating element | 11 mm Bulb |
| Response | High Temperature, Standard Response, Standard Coverage |
| Thread size | 1/2″, 3/4″ |
| K-Factor | 5.6, 8.0 |

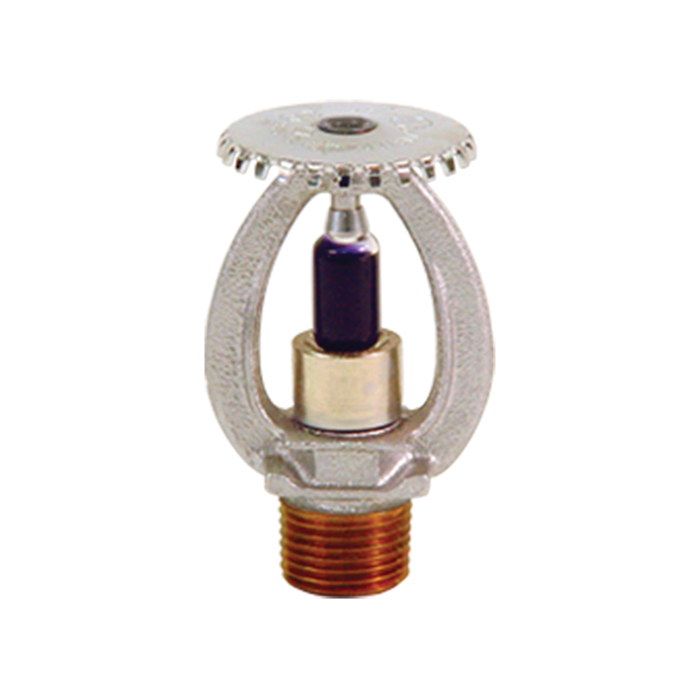

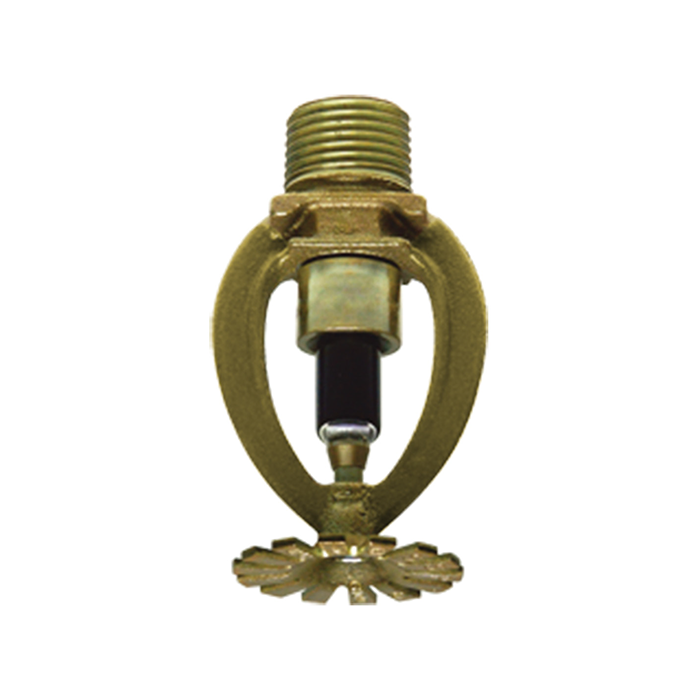

| Orientation | Pendent , Upright |
| Temperature Ratings °F | 400, 500, 650 |
| Maximum Working Pressure | 175 psi (12 bar) |
| Compliance | FM, UL, C-UL, LPCB |
| Reference Datasheet | TFP690 |
Product specifications, approvals, and availability are subject to change without notice.
Always refer to the latest Tyco Fire Protection Products datasheets for complete and current information.
