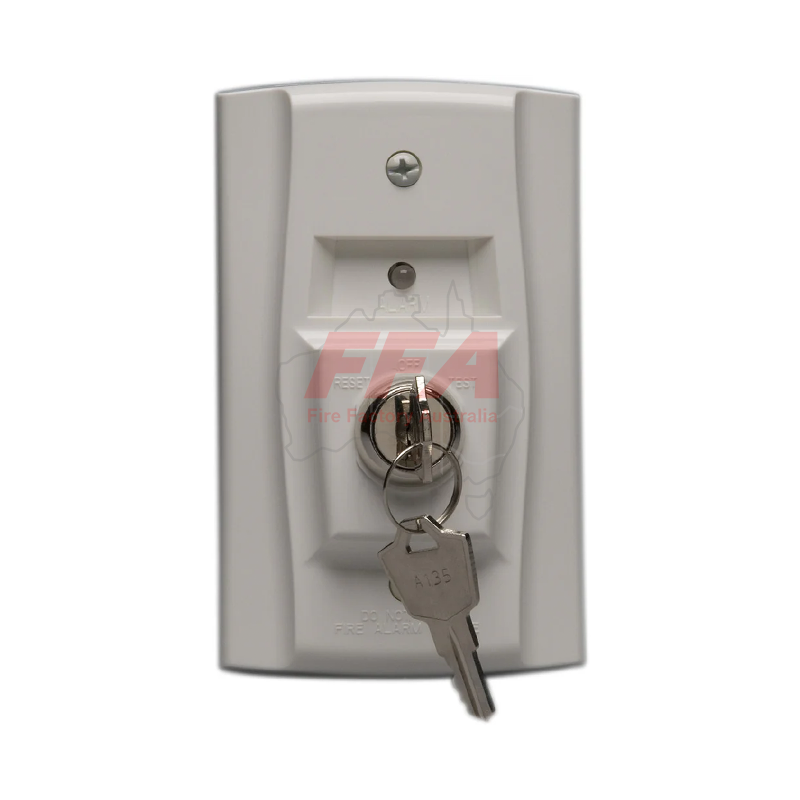

Honeywell RTS151KEY Remote Test & Reset Switch

The Honeywell RTS151KEY Remote Test & Reset Switch is a fire detector accessory designed to provide convenient remote testing and reset capability for compatible smoke detection systems. It allows maintenance personnel to activate detector testing and reset functions from an accessible location without requiring direct access to the installed detector.

Featuring a key-operated switch and LED status indication, the RTS151KEY is ideal for applications where duct smoke detectors or other compatible detectors are installed in difficult-to-access areas.

Designed for professional fire alarm installations, the RTS151KEY improves serviceability by providing a simple and reliable method for routine detector testing and maintenance.



Key Features:

  • Genuine Honeywell/System Sensor remote test station
  • Key-operated TEST and RESET functions
  • Designed for compatible duct smoke detectors
  • LED alarm indication
  • Mounts to standard single-gang box or wall surface
  • Supports easier detector inspection and maintenance
  • Suitable for commercial, industrial, and HVAC applications



The Honeywell RTS151KEY Remote Test & Reset Switch provides a practical solution for remote detector testing and system maintenance in modern fire detection installations.

Additional information

Models

SMX+650-1L-PS5, SMX+900-1L-PS5, SMX+900-1L-PS11, SMX+650-1L-PS11GL, SMX+12U1LPS11, SMX+28U1LPS11, SMX+40U1LPS11, SMX+40U1LPS11, LCM-320, LEM-320

Specifications

Specification Details
Product Name Remote Test & Reset Switch
Model / Part Number RTS151KEY
Brand Honeywell / System Sensor
Product Type Remote detector test station with key switch
Application Remote testing and resetting of compatible fire detectors
Compatible Systems Compatible Honeywell/System Sensor duct smoke detectors and selected OSID applications
Functions Remote TEST initiation and RESET operation
Operation Key-operated switch
LED Indication Alarm indication LED (and status indication depending on application)
Mounting Single-gang electrical box or direct wall/ceiling mounting
Temperature Range -10°C to +60°C
Humidity Rating Up to 95% RH non-condensing
Alarm LED Supply 2.8–32 VDC, 12 mA maximum
Switch Rating 10 VA at 32 VDC
Dimensions Approx. 4.6″ H × 2.75″ W × 1.8″ D
Approvals UL, FM, CE
