| Property | Specification |
|---|---|
| Brand | Tyco |

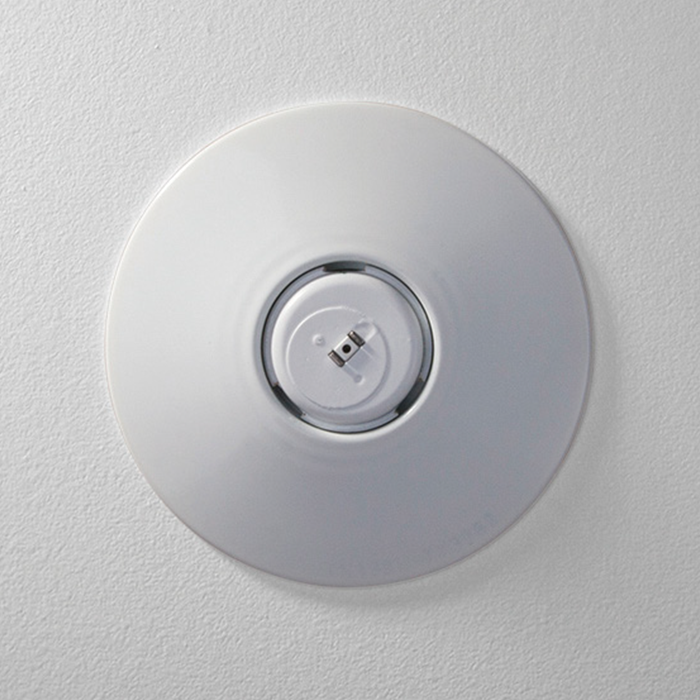

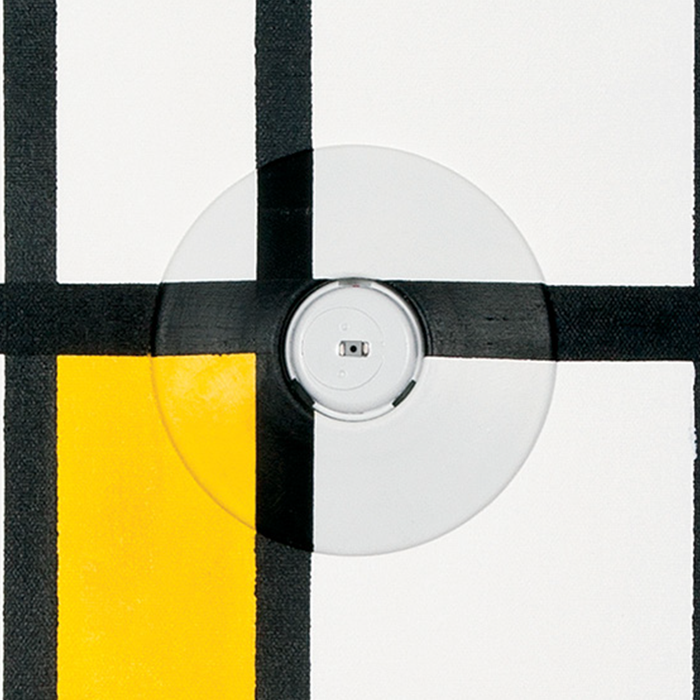

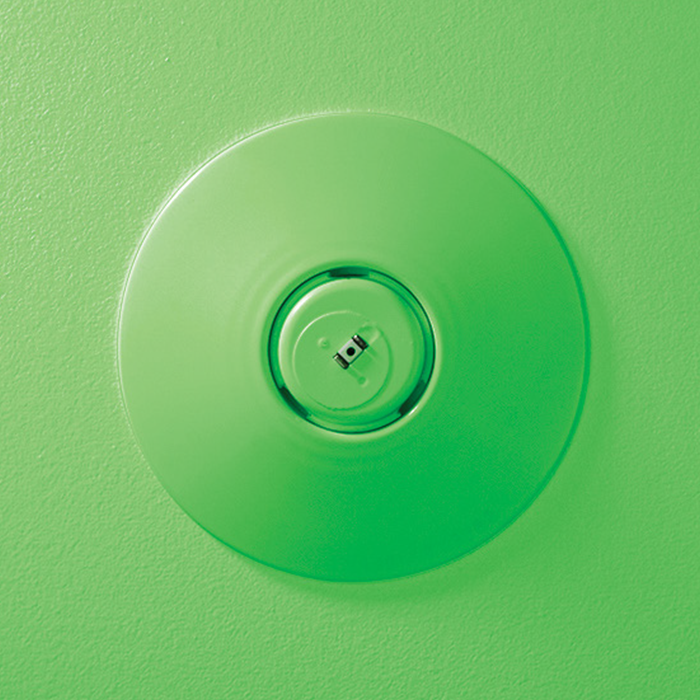

| Model Series | Tyco RAVEN Studio Sprinklers |
| Operating element | Solder |
| Response | Quick Response, Standard and Extended Coverage |
| Thread size | 1/2″ |
| K-Factor | 5.6 |
| Orientation | Pendent and Horizontal Sidewall |
| Temperature Ratings °F | 165 |
| Maximum Working Pressure | 175 psi (12 bar) |
| Finish Options | W, G, Custom |
| Compliance | UL, C-UL |
| Reference Datasheet | TFP658 |
Product specifications, approvals, and availability are subject to change without notice.
Always refer to the latest Tyco Fire Protection Products datasheets for complete and current information.
