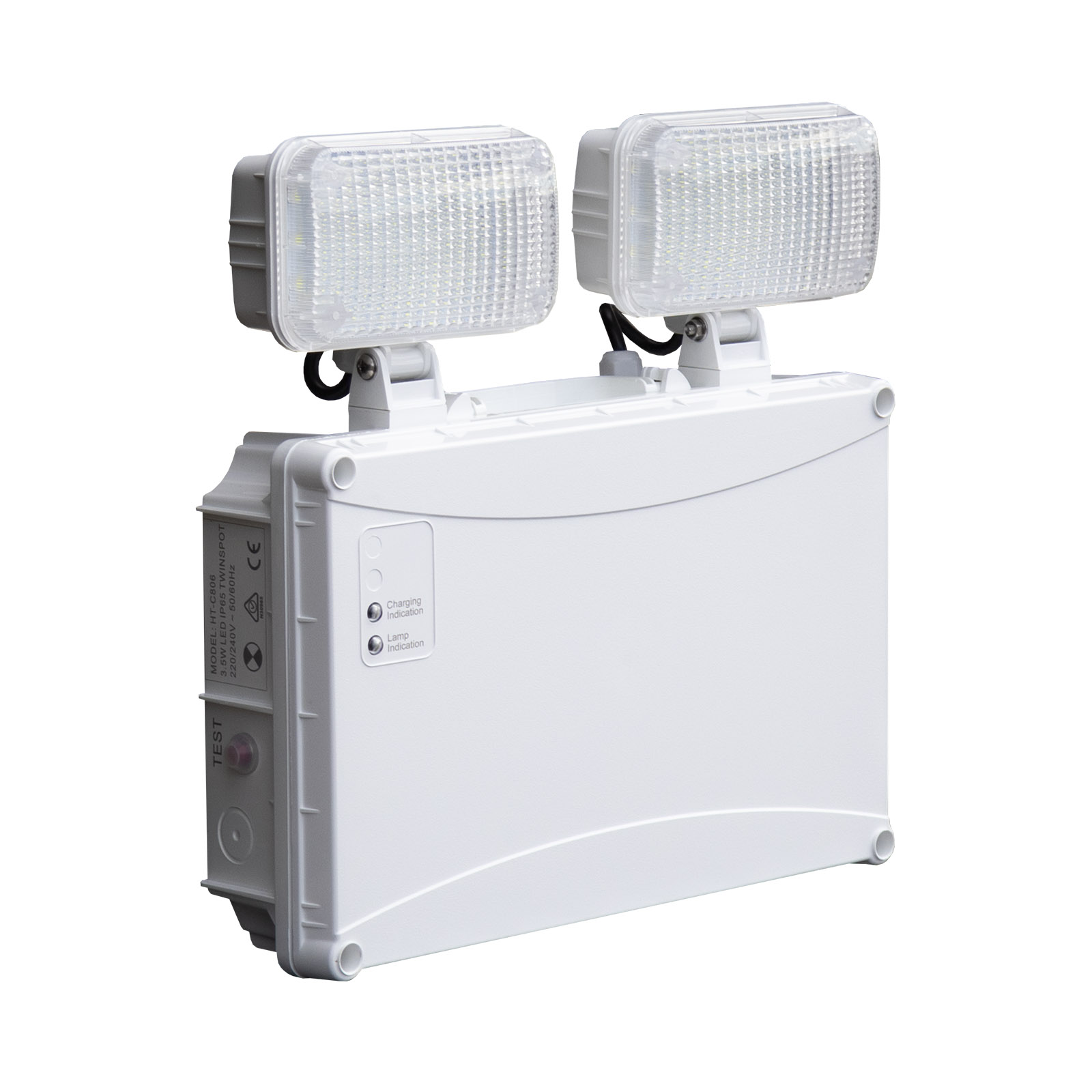

HT-C806 – IP65 LED Twin Spot Emergency Light Weatherproof

HT-C806 – IP65 LED Twin Spot Emergency Light Weatherproof

Description

The HT-C806 – 3.5W LED IP65 Twin Spot Emergency Light is a heavy-duty emergency lighting unit designed for reliable operation in demanding environments. Featuring two adjustable LED spotlight heads, it provides strong, focused illumination to help maintain visibility and safe evacuation during power outages.

Built with a weatherproof IP65 enclosure, the HT-C806 offers excellent protection against dust and water, making it suitable for both indoor and outdoor installations such as warehouses, factories, car parks, loading docks, and building exteriors. Powered by a LiFePO4 battery, the unit delivers more than 3 hours of emergency lighting and meets AS/NZS 2293 emergency lighting requirements.

Key Features

  • 3.5W LED twin spot emergency light
  • Two adjustable LED heads for wide emergency lighting coverage
  • IP65 weatherproof housing for indoor and outdoor use
  • High brightness output – 370 lumens
  • LiFePO4 3.2V 5500mAh battery for reliable backup power
  • Emergency duration: more than 3 hours
  • Recharge time: 24 hours
  • Durable construction suitable for industrial and commercial environments
  • Energy-efficient LED technology with long service life
  • Ideal for warehouses, factories, stairwells, car parks, and external areas
  • 5-year warranty (battery excluded)

Specifications

Specification Details
Product Name 3.5W LED IP65 Twin Spot Emergency Light
Model No. HT-C806
Brand FFA
Unit Of Measure each
Mounting Type Surface Mounted
Input Voltage AC 220–240V
Frequency 50/60Hz
Power 3.5W
Luminous Flux 370 lm
Power Factor 0.3
Supply Current 38 mA
LED Configuration Dual LED Heads (54 + 54 LEDs)
Battery LiFePO4 3.2V 5500mAh
Emergency Duration > 3 hours
Recharge Time 24 hours
Operating Temperature 0–40°C
Ingress Protection IP65
Fuse 1A 250V / 3.15A 250V
Cable 1.5 m Cable Plug
Standard Compliance AS/NZS 2293
Warranty 5 Years (Battery excluded)

Technical Documents

Download Product Guide

Download IES File
