FFA-SALED36-4F – Smart Adjustable LED 4 Foot Twin Emergency Battens

FFA-SALED36-4F – Smart Adjustable LED 4 Foot Twin Emergency Battens

Description

The FFA-SALED36-4F-ES is a 4-foot twin LED emergency batten designed for energy-efficient, reliable emergency lighting in commercial, residential, and industrial environments. This model features smart adjustable brightness to ensure optimal illumination while maximizing battery life during emergency operation.

It combines the benefits of normal LED lighting with emergency backup functionality, making it ideal for corridors, stairwells, offices, and public spaces where safety and compliance with emergency lighting standards are essential.

Key Features:

  • Twin LED Tubes – 25W total – bright, energy-efficient illumination
  • CCT adjustable for selectable colour temperatures
  • Power selectable: 25W/30W/36W
  • Integrated emergency function for blackout protection
  • Smart Adjustable Output – adjustable emergency brightness for battery optimisation
  • Emergency Function – integrated backup battery for operation during power failure
  • Durable and Long-lasting – high-quality LED modules for extended service life
  • Energy-efficient, low-maintenance LED technology
  • Emergency lighting for commercial, industrial, and residential buildings

Specifications

Product Name FFA-SALED36-4F – Smart Adjustable LED 4 Foot Twin Emergency Battens
Model No FFA-SALED36-4F
Type Twin Emergency Batten
Installation Type Ceiling/Wall Mounted

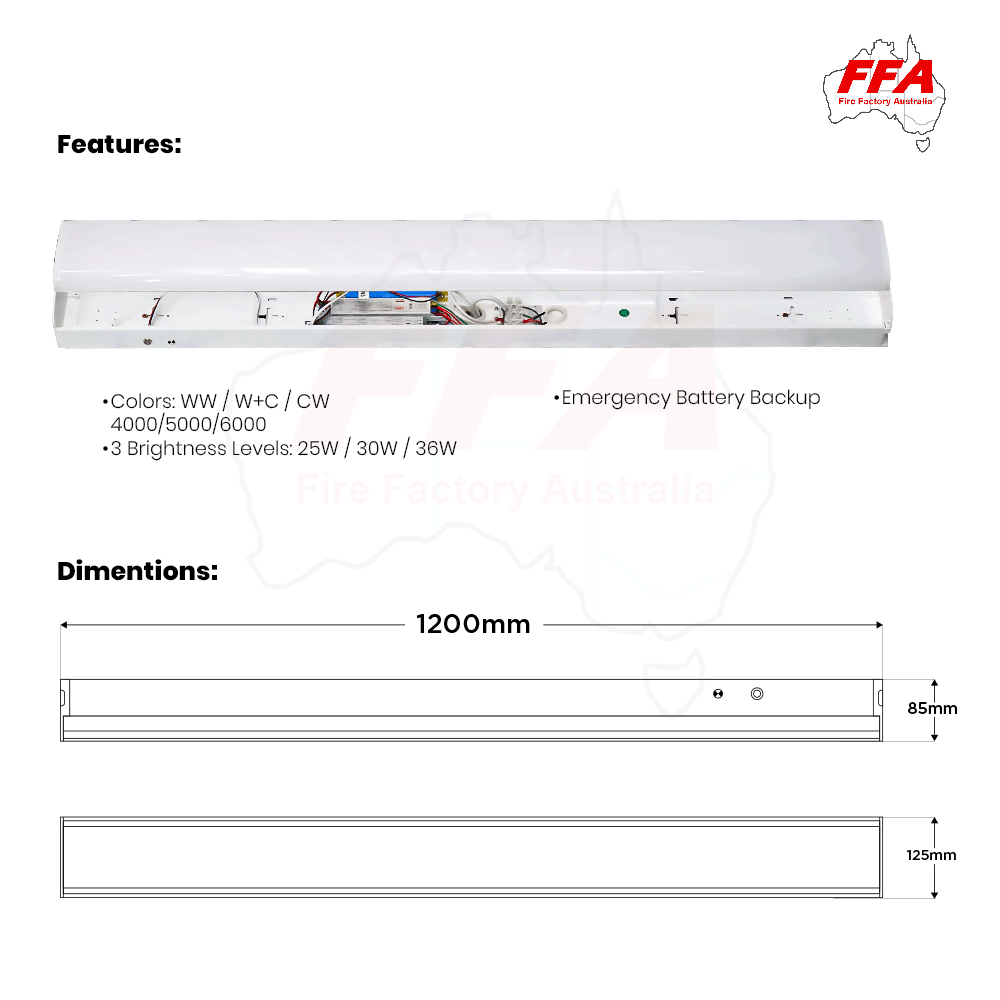

Dimensions 125mm (W) x 1200mm (L)
Colour Temperature (CCT) 4000K / 5000K / 6000K
Colour Rendering Index (CRI / Ra) Ra ≥80
Power Selectable 25W / 30W / 36W

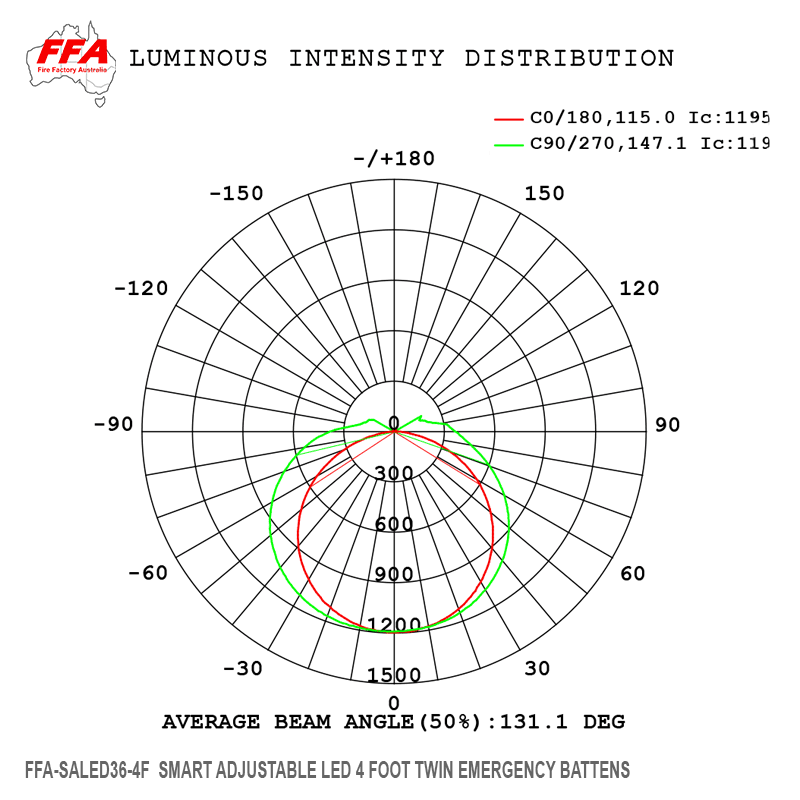

Classification C:0=D100, C:90=50
Input Voltage 220-240V
Frequency 50/60 Hz
Emergency Duration 3 Hours
Battery Type Li-ion
Battery Capacity 18650 – Li-FeP04 6.4V 3Ah 19.2Wh
Charging Time 24 Hours
Charger Operation Continuous
IP Rating IP20
Max Ambient Temp +50℃
Electrical Class Class 1
Standard SAA Certification, AS2293.3 Certification
Warranty 3 years (excluding battery)

Technical Documents

Download Product Guide

Download IES File
