| Property | Specification |
|---|---|
| Brand | Tyco |

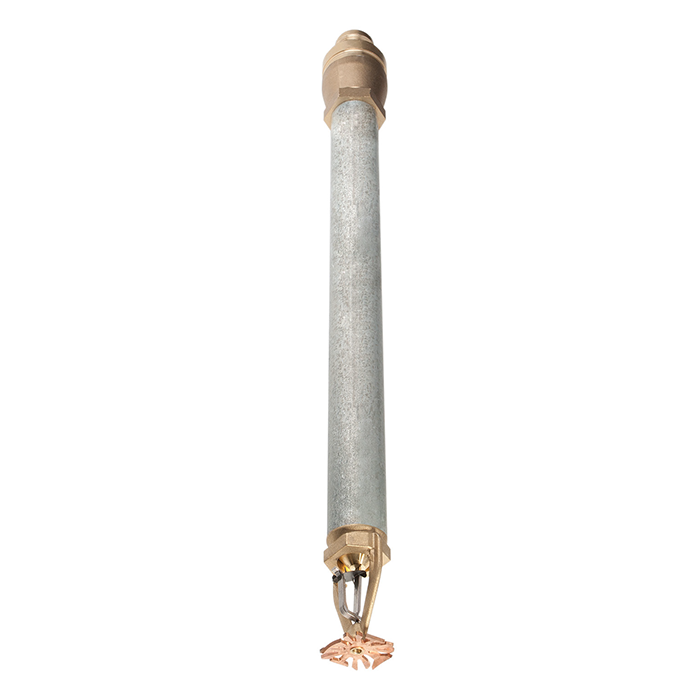

| Model Series | Tyco ESFR-17 Sprinklers |
| Operating element | Solder |
| Response | Fast Response |
| Thread size | 1-1/4″ |
| K-Factor | 16.8 |
| Orientation | Pendent |
| Temperature Ratings °F | 165, 212 |
| Maximum Working Pressure | 175 psi |
| Compliance | UL, FM |
| Reference Datasheet | TFP320 |
Product specifications, approvals, and availability are subject to change without notice.
Always refer to the latest Tyco Fire Protection Products datasheets for complete and current information.
