| Property | Specification |
|---|---|
| Brand | Tyco |

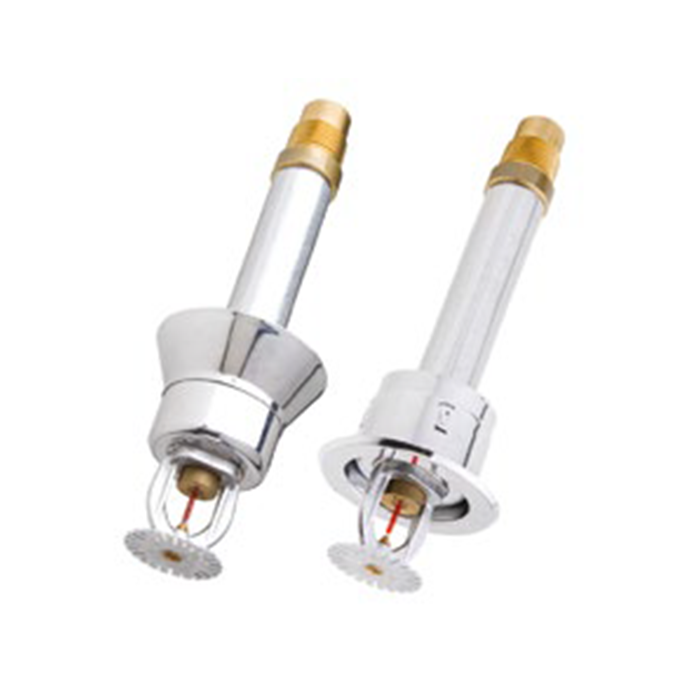

| Model Series | Tyco DS-2 Sprinklers |
| Operating element | Bulb |
| Response | Standard and Quick Response |
| Thread size | 1″ |
| K-Factor | 11.2 |
| Orientation | Pendent |
| Temperature Ratings °F | 135, 155, 175, 200, 286 |
| Maximum Working Pressure | 175 psi |
| Finish Options | B, C, SW |
| Compliance | UL, C-UL, NYC |
| Reference Datasheet | TFP530 |
Product specifications, approvals, and availability are subject to change without notice.
Always refer to the latest Tyco Fire Protection Products datasheets for complete and current information.
