| Property | Specification |
|---|---|
| Brand | Tyco |

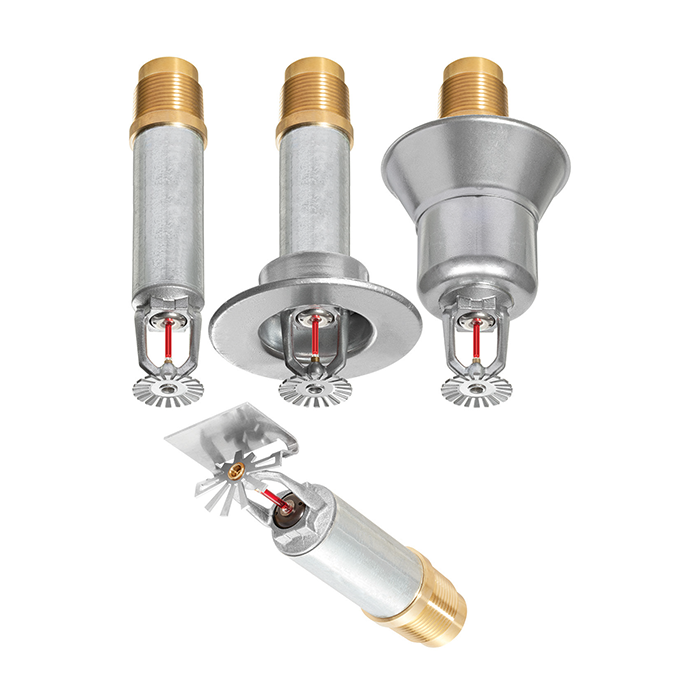

| Model Series | Tyco DS-8 Sprinklers |
| Operating element | Bulb |
| Response | Quick and Standard Response |
| Thread size | 1″ |
| K-Factor | 8.0 |
| Orientation | Pendent |
| Temperature Ratings °F | 135, 155, 175, 200, 286, 360 |
| Maximum Working Pressure | 175 psi |
| Finish Options | B, C, SW |
| Compliance | UL, C-UL |
| Reference Datasheet | TFP535, TFP555 |
Product specifications, approvals, and availability are subject to change without notice.
Always refer to the latest Tyco Fire Protection Products datasheets for complete and current information.
