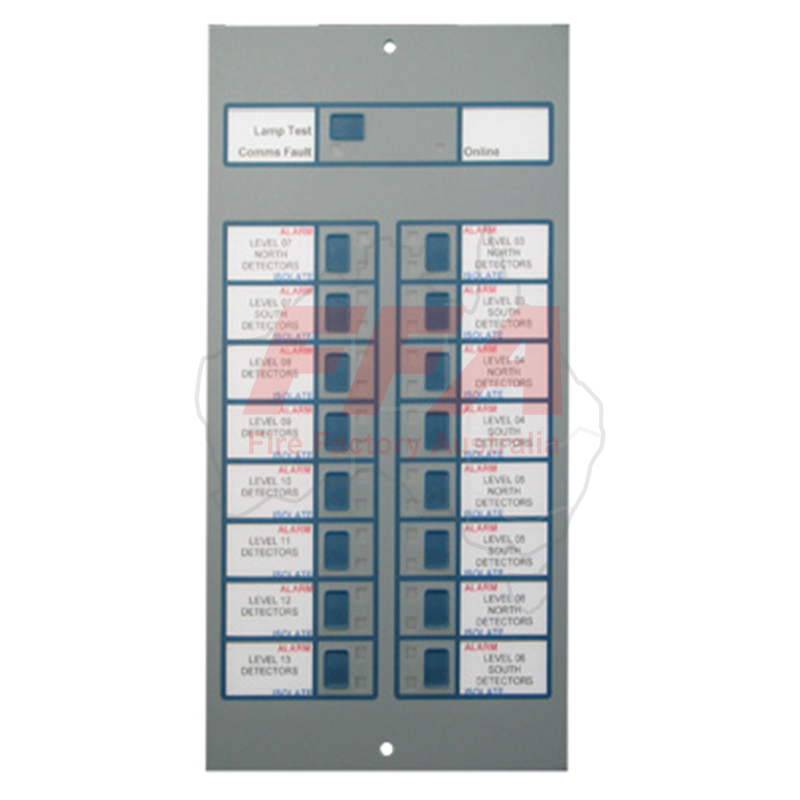

The ACM-24AT-AUS Annunciator Control Module is an intelligent remote annunciation and control interface designed for compatible Honeywell NOTIFIER fire alarm systems. It provides 24 programmable control points with visual status indication and touch-pad controls, enabling operators to monitor and control critical fire alarm functions from a convenient remote location.
The ACM-24AT-AUS features 24 tri-colour status LEDs with dedicated yellow fault indicators for each point, providing clear visual indication of alarm, normal, supervisory, and fault conditions. Each point is equipped with a momentary touch-pad switch that can be programmed for authorised system control functions, subject to fire alarm control panel configuration.
The module includes an On-Line/Power LED, System Fault LED, and an integral piezo sounder with a silence switch to provide local audible and visual notification of system events. Communication with the fire alarm control panel is via the reliable ACS (Annunciator Control System) EIA-485 serial communication bus, ensuring dependable remote operation.

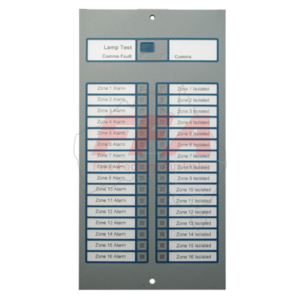

The ACM-24AT-AUS is fully expandable through the addition of up to three AEM-24AT-AUS Annunciator Expander Modules, increasing system capacity from 24 to a maximum of 96 annunciation and control points while maintaining a single, integrated user interface.
Designed for commercial, industrial, healthcare, education, and large infrastructure facilities, the ACM-24AT-AUS provides flexible remote monitoring and control for supported Honeywell NOTIFIER fire alarm systems, including the AFP-3030 and NCA-2 platforms.
Key Features
- Intelligent remote annunciator and control module
- 24 programmable annunciation and control points
- 24 tri-colour status LEDs with dedicated fault indicators
- 24 programmable momentary touch-pad switches
- On-Line/Power and System Fault indicators
- Built-in piezo sounder with silence switch
- Expandable to 96 points with up to three AEM-24AT-AUS modules
- Reliable EIA-485 ACS communication
- Compatible with Honeywell NOTIFIER AFP-3030 and NCA-2 systems
- Suitable for commercial and industrial fire alarm applications
The Honeywell NOTIFIER ACM-24AT-AUS Annunciator Control Module delivers reliable remote fire alarm monitoring and operator control, providing clear system status indication, flexible expansion capability, and seamless integration with intelligent fire alarm control panels.
