FFA-LEM210SN – 2x10w 2 foot LED STRIP Emergency Light with Microwave Sensor

FFA-LEM210SN – 2x10w 2 foot LED STRIP Emergency Light with Microwave Sensor

Description

The FFA-LEM210SN – 2×10W 2 Foot LED Strip Emergency Light with Microwave Sensor is a compact, energy-efficient emergency lighting solution designed for commercial, industrial, retail, and corridor applications. Equipped with dual 10W high-efficiency LED strip modules and an integrated microwave motion sensor, this unit provides automatic illumination, ensuring visibility and safety even in low-traffic or low-light areas.

Featuring a slimline 2-foot batten design, the FFA-LEM210SN offers reliable emergency operation during power outages, intelligent motion detection, low energy consumption, and full compliance with AS/NZS 2293 emergency lighting standards. Ideal for environments requiring smart, automatic lighting control.

Key Features:

  • 2 × 10W high-efficiency LED strip modules

  • Integrated microwave sensor for automatic activation

  • 2-foot slimline design

  • Energy-efficient LED technology with long service life

  • Automatic emergency mode activation during power failure

  • Ideal for commercial corridors, retail, industrial sites, stairwells, and carparks

  • AS/NZS 2293 compliant

  • Smart control for reduced energy consumption

Specifications

Product Name FFA-LEM210SN – 2x10w 2 foot LED STRIP Emergency Light with Microwave Sensor
Model No FFA-LEM210SN
Brand FFA
Dimensions 650mm x 122mm x 91mm
Colour Temperature (CCT) 6000K
Colour Rendering Index (CRI / Ra) ≥80
Input Voltage 220-240V AC
Input Current 130mA
LED Model 2835
LED Quantity 96 pcs
Luminous Flux 548lm
Base Angle 120°
Emergency Power 2-5W
Emergency Duration ≥3 hours
Emergency Output Voltage 23V ±10%
Emergency Output Current 135mA ±10%
Emergency Interface Have
Battery Capacity 3.7V 4400mAh
Charging Voltage 8.3V ±0.2V
Charging Current ≤250mA
Charger Power 2W
Charging Time ≥24 hours
Max Ambient Temp -20~+50°C
LED Lifetime 50,000 hours
Standard Approved to Australian Standard AS 2293.3
Warranty 3 Years Replacement Warranty



SENSOR-BN SPECIFICATIONS
Power Supply 220-240V 50/60Hz
CHF System 5.8GHz CW Radar 1
Reach 10m(radii), adjustable
Time Setting 8 seconds to 12
Light Control minutes 2-2000 lux
Detection Angle 360
Transmission Power <10MW
Rated Load 120W (9-24V DC)

Technical Documents

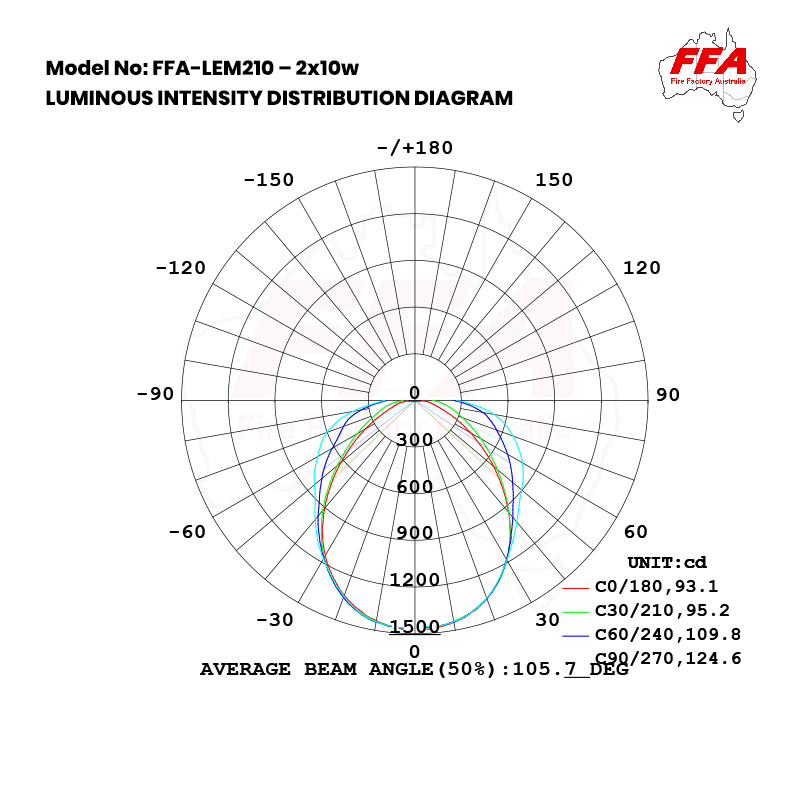

Download IES File
