Description
All Tyco Sprinkler Accessories
Sprinkler Installation Parts are engineered to assist with alignment, protection, sealing, and finishing in various environments. They ensure proper sprinkler positioning, long-term reliability, and ease of installation for contractors and installers.
| Sprinkler Installation Parts | Suited For | Part Number |
|---|---|---|
| Air and Dust Seal | — | 56-908-1-001 |
| RIS Welded Fitting Plug Assembly | — | 56-888-0-102 |
| RIS Welded Fitting Powder Coating Plug | — | 56-888-0-106 |
| RIS Welding Alignment Cone | — | 56-888-0-002 |
| ESFR RIS Gasket | — | 91-448-1-001 |
| Replacement O-Ring | Model S4 Sprinkler Shield Replacement O-Ring | 62-578-1-118 |
| Pipe Guide Bracket Accessory | 3/4 in. (DN20) | 91-520-115 |
| 1 in. (DN25) | 91-520-1-117 | |
| DSB-2 Dry Sprinkler Boot | Includes one boot, two strap ties, and 1/3 oz of adhesive | 63-000-0-002 |
| Insulating Seal Assembly Kit | Insulating Seal Assembly Kit, Insulation Ring, Insert, Housing, Screws | 91-106-1-500 |
| Paint Cap | RAVEN Studio Sprinkler Paint Cap | 56-100-0-354 |
| RAVEN Studio Sprinkler Thread Adapter, Brass | Short 3/4 in. (19 mm) | 91-310-0-075P |
| Standard 1 in. (25 mm) | 91-310-0-100P | |
| Medium 1-1/2 in. (38 mm) | 91-310-0-150P | |
| Long 2 in. (50 mm) | 91-310-0-200P | |

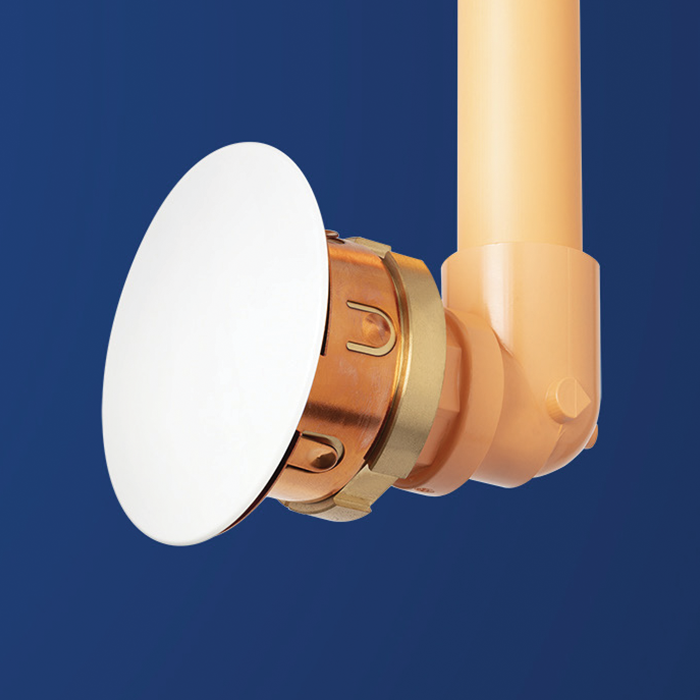

| CPVC Sprinkler Adapter Fitting | 90° Elbow | 82198 |
| Tee | 82251 | |
| Parts for Installation in Concrete | Model 1781 Centering Grommet for installation in concrete | 56-000-1-781 |
| Model 1780 Retaining Flange with Set Screws for installation in concrete | 56-000-1-780 | |
| Adjustment Spacer Ring for use with RAVEN Institutional Sprinklers | 56-000-1-755 | |
| Spacers for Vertical Adjustment | Model 1752 Spacers for use with Style B-1 and C Institutional Escutcheons | 56-000-1-752 |
| Parts for Installation in Concrete with Type A Escutcheon | Model 1753 Recessed Cup for use with Style A Escutcheon | 56-000-1-753 |
| Model 1290-8 Pipe Plug with Shoulder for use with Style A Escutcheon | 56-001-2-908 | |
| Model 1754 Pipe Support for use with Style A Escutcheon | 56-000-1-754 |
