Description
Available Sizes:
- 200 Meter Roll
Available Sizes:
| Select Size | 100m, 200m |
|---|
FFA TPS Fire Alarm Cables are premium-grade, fire-rated flat TPS cables designed for safe and reliable connection of fire detection, emergency warning, and evacuation systems. These cables are ActivFire Certified, AS1670.2018 compliant, and meet Green Star requirements, making them the ideal choice for both performance and sustainability in fire protection installations.
They are suitable for connecting:
Fire Alarm Control Panels (FACP)
EWIS (Emergency Warning and Intercommunication Systems)
OWS (Occupant Warning Systems)
Speakers, Smoke Detectors, Strobes, Sirens & Field Devices
ActivFire Certified – third-party verified for Australian fire safety standards
AS/NZS 3013:2005 Compliant – Mechanical Protection Rating: WSX1
AS1670.2018 Compliant – approved for fire alarm and EWIS cabling
Green Star Compliant – suitable for use in sustainable building projects
Red Outer Sheath – clearly marked for easy fire cable identification
White Stripe – designed to differentiate speaker loops from detector circuits, reducing installation errors
Flat, Double-Insulated TPS Design – allows for quick and safe stripping, routing, and termination
ELV Markings – safe for Extra Low Voltage (ELV) applications

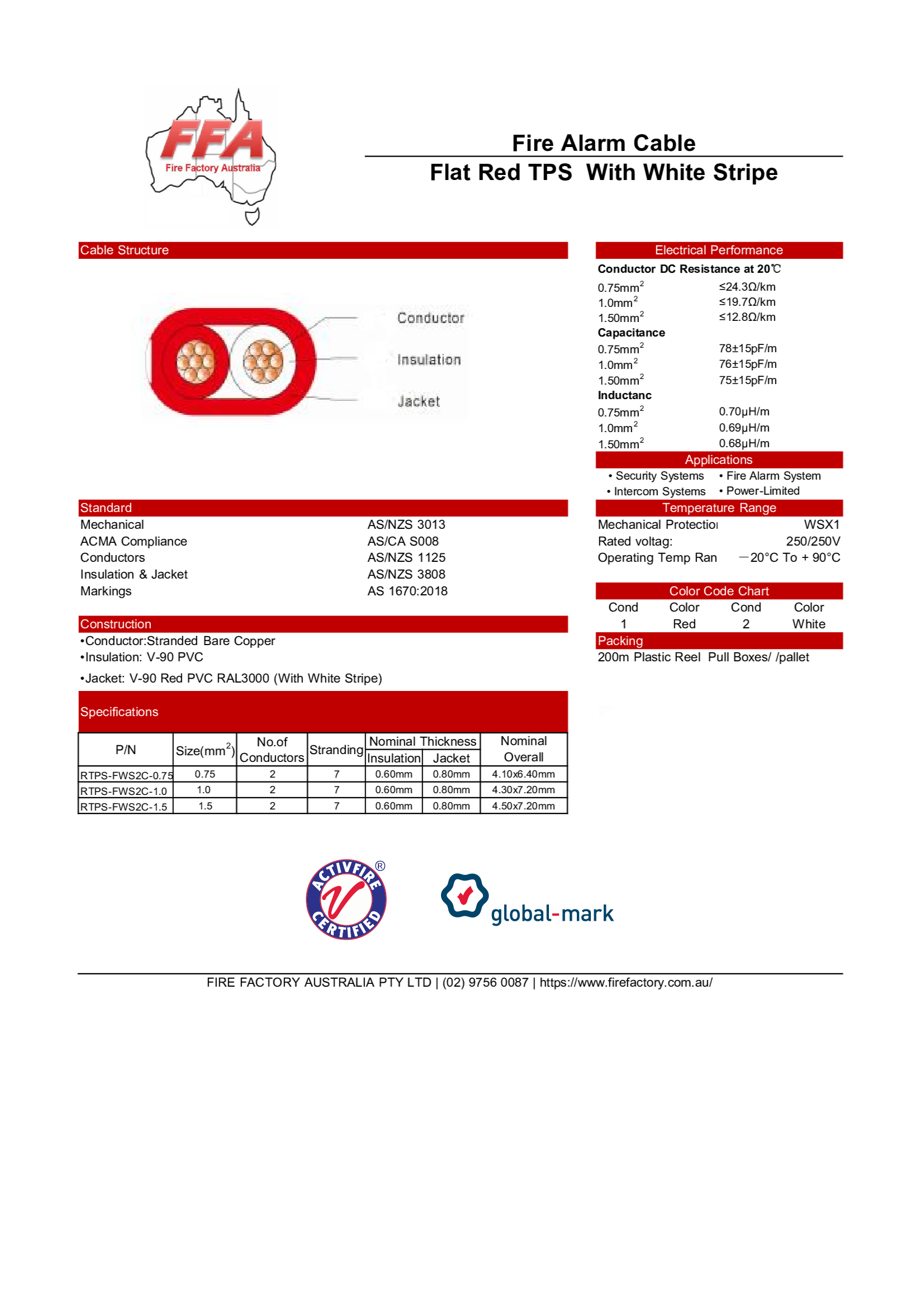

| SKU | RTPS-FWS2C-0.75 |
| Size | 0.75mm |
| Brand | FFA |
| Conductor | Bare Copper |
| NO# Of Conductors | 2 |
| Strands | 7 |
| Nominal Overall Diameter | 4.30 x 7.20mm |
| Mechanical Protection | WSX1 |
| Insulation | V-90 PVC |
| Insulation Colour | Red, White |
| Sheath Colour | Red / White Stripe |
| Sheath Marking | ELV Fire |
| Operating Temp Range | -25°C + 110°C |
| Rated Voltage | 250/250V |
