| Property | Specification |
|---|---|
| Brand | Tyco |
| Model Series | Tyco EC-5 Sprinklers |
| Operating element | 3 mm Bulb |
| Response | Extended Coverage |
| Thread size | 1/2″ |
| K-Factor | 5.6 |

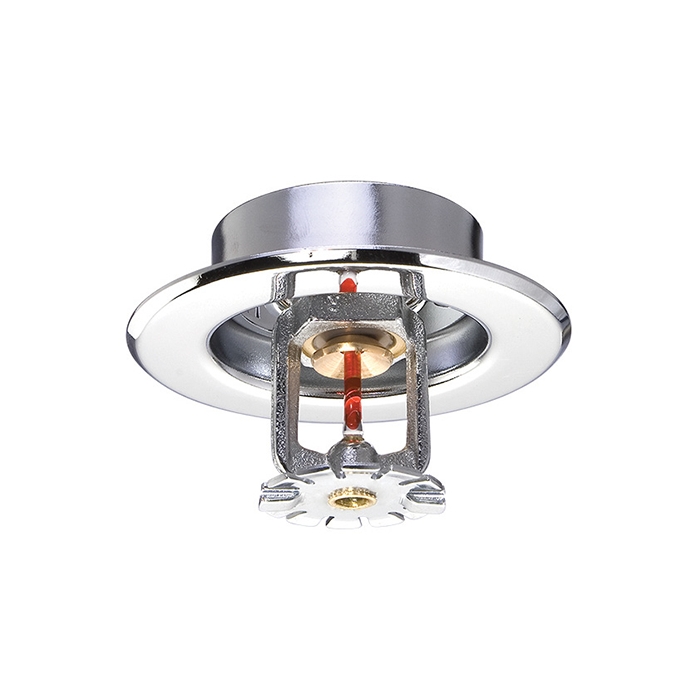

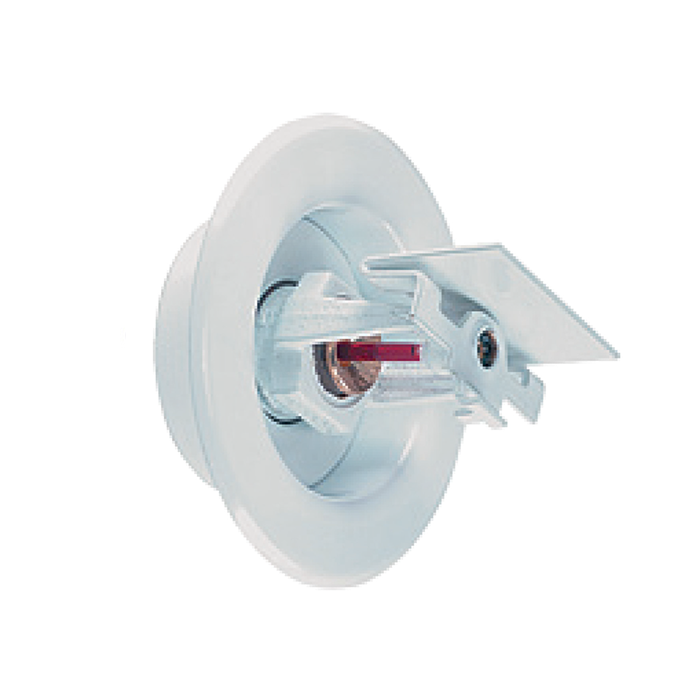

| Orientation | Pendent and Horizontal Sidewall |
| Temperature Ratings °F | 135, 155, 200 |
| Maximum Working Pressure | 175 psi |
| Finish Options | B, C, SW, PW |
| Compliance | UL, C-UL, FM, NYC |
| Reference Datasheet | TFP228, TFP298 |
Product specifications, approvals, and availability are subject to change without notice.
Always refer to the latest Tyco Fire Protection Products datasheets for complete and current information.
